Nifco’s single-unit cable strap streamlines assembly by combining the clip and strap into one seamless solution. The clip snaps securely into place, while the strap holds cables firmly with a strong, adjustable grip. As a result, installers can make quick changes during setup or maintenance without hassle. Moreover, the strap’s easy fastening and release mechanism enhances flexibility on the job. Thanks to its reusable design, it not only extends product life but also helps reduce waste. Ultimately, this makes it a cost-effective and eco-friendly choice for a wide range of cable management applications. Please contact us here with any questions.
Streamlined single-unit design: The integrated clip and strap form one cohesive unit, which simplifies the assembly process and reduces the number of components.

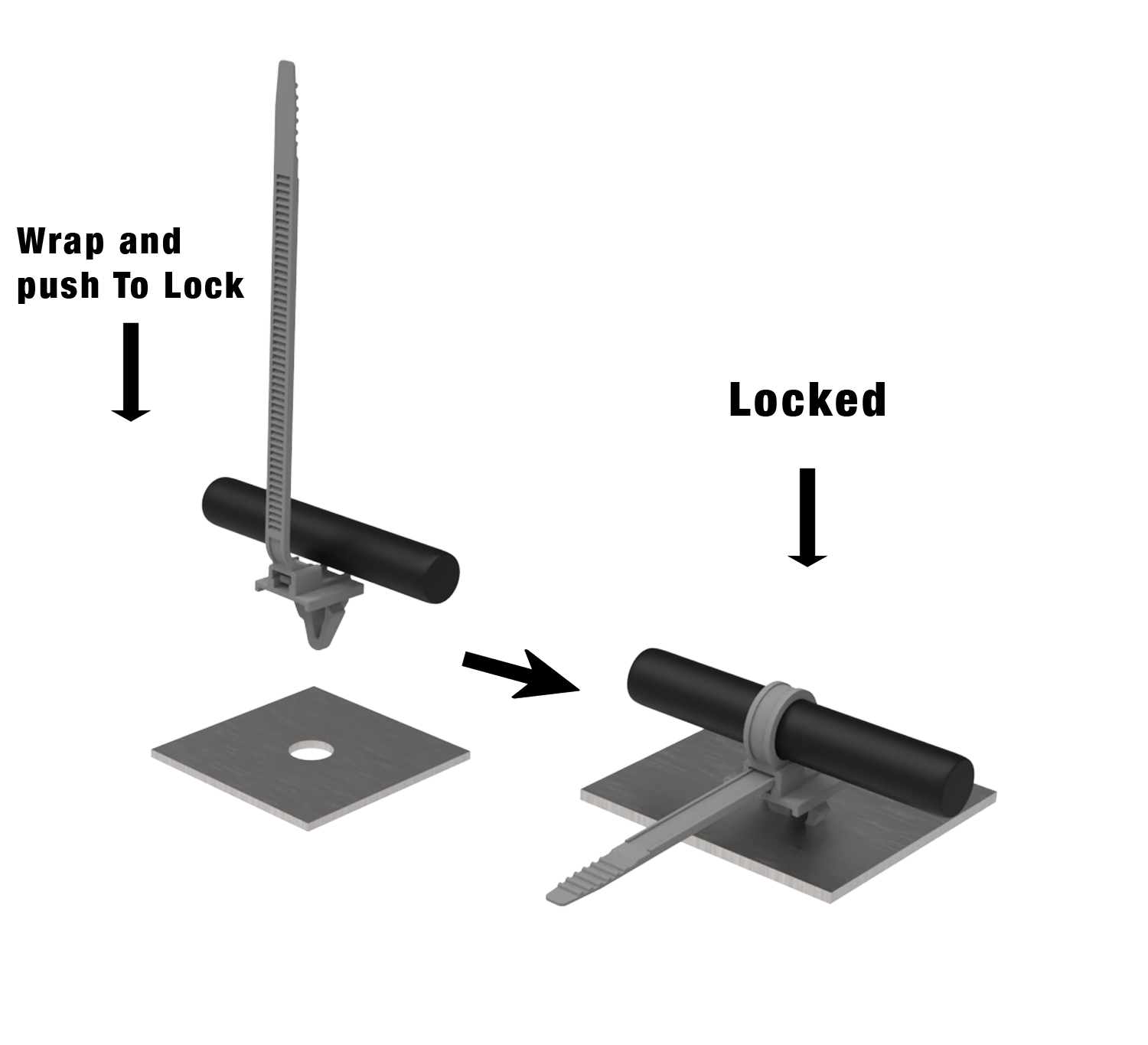

Effortless attachment: The clip locks securely into a mounting hole, while the strap wraps around cables to deliver a strong, reliable hold.
Quick fastening and release: Users can easily tighten or loosen the strap, enabling fast adjustments during installation and maintenance.
Reusable and sustainable: The strap’s durable design allows repeated use, which extends product life and cuts down on assembly waste.
262V | 1.5 ~ 30 | 7 | 1.0 ~ 2.2 | 19 | 9.6 | PA6 |
1F3K | 5~25 | 7.0 X 12.5 | 2.5 | 26.6 X 12.2 | 12.8 | PA66 |
1F2B | 5~25 | 8.0 X 10.0 | 0.4 ~ 0.8 | 17.0 X 12.0 | 8.3 | PA66 |
3A91 | 5~30 | 9 | 0.7 ~ 2.0 | 21.0 X 10.0 | 12.2 | PA6 |
3T24 | 5~45 | 7 | 0.7 ~ 2.6 | 19.0 X 10.0 | 12.2 | PA6 |
1X37 | 6~20 | 7 | 1.2 | 14 | 8.5 | PA6 |
18P9 | 6 ~20 | 7 | 1.2 ~ 1.6 | 14 | 8.5 | PA6 |
2148 | 6~28 | 3.5 X 4.7 | 1 | 8.5 X 5.0 | 9 | PA66 |
0Z2S | 8~20 | 6.4 | 2.0 ~ 3.0 | 18 | 12.3 | PA66 |
1775 | 10 ~ 17 | 5.4 | 0.7 ~ 0.9 | 19.0 X 10.0 | 10 | PA6 |
1763 | 10 ~ 20 | 7 | 0.7 ~ 2.6 | 19.0 X 10.0 | 12.2 | PP |
3J19 | 10 ~ 25 | 7 | 0.7 ~ 2.6 | 23.5 X 12.0 | 12.5 | PP |
1764 | 10 ~ 30 | 7 | 0.7 ~ 2.6 | 19.0 X 10.0 | 12.2 | PP |
1686 | 10 ~ 32 | 5.4 | 0.7 ~ 0.9 | 19.0 X 10.0 | 10 | PA6 |
1259 | 10 ~ 38 | 7 | 0.7 ~ 2.0 | 19.0 X 10.0 | 11.7 | PA6 |
1765 | 10 ~ 40 | 7 | 0.7 ~ 2.6 | 19.0 X 10.0 | 12.2 | PP |
2M50 | 10 ~ 43 | 5.4 | 0.7 ~ 1.8 | 19.0 X 10.0 | 11 | PA6 |
5782 | 10 ~ 50 | 7 | 0.7 ~ 2.6 | 19.0 X 10.0 | 12.2 | PP |
13A0 | 10 ~ 55 | 7 | 0.7 ~ 2.6 | 19.0 X 10.0 | 12.2 | PP |
1N89 | 15 ~ 27 | 7 | 0.7 ~ 1.6 | 19.0 X 10.0 | 12.2 | PA6 |
36S9 | 15 ~ 30 | 7 | 1.6 ~ 2.5 | 19 | 10.4 | PA6 |
1V89 | 15 ~ 25 | 7 | 0.8 ~ 1.8 | 22.0 X 11.5 | 11.5 | PA6 |
1D58 | 15 ~ 34 | 7 | 1.0 ~ 2.0 | 18.0 X 8.0 | 9 | PP |
1K57 | 15 ~ 35 | 7 | 0.8 ~ 1.8 | 22.0 X 9.0 | 11.5 | PA6 |
1W02 | 15 ~ 40 | 7 | 1.0 ~ 2.0 | 18.0 X 8.0 | 9 | PP |
0U9D | 15~40 | 9 | 3 | 14.4 | 12 | PA6 |
15W4 | 17 ~ 20 | 7 | 0.8 ~ 1.2 | 16 | 7.6 | PA6 |
