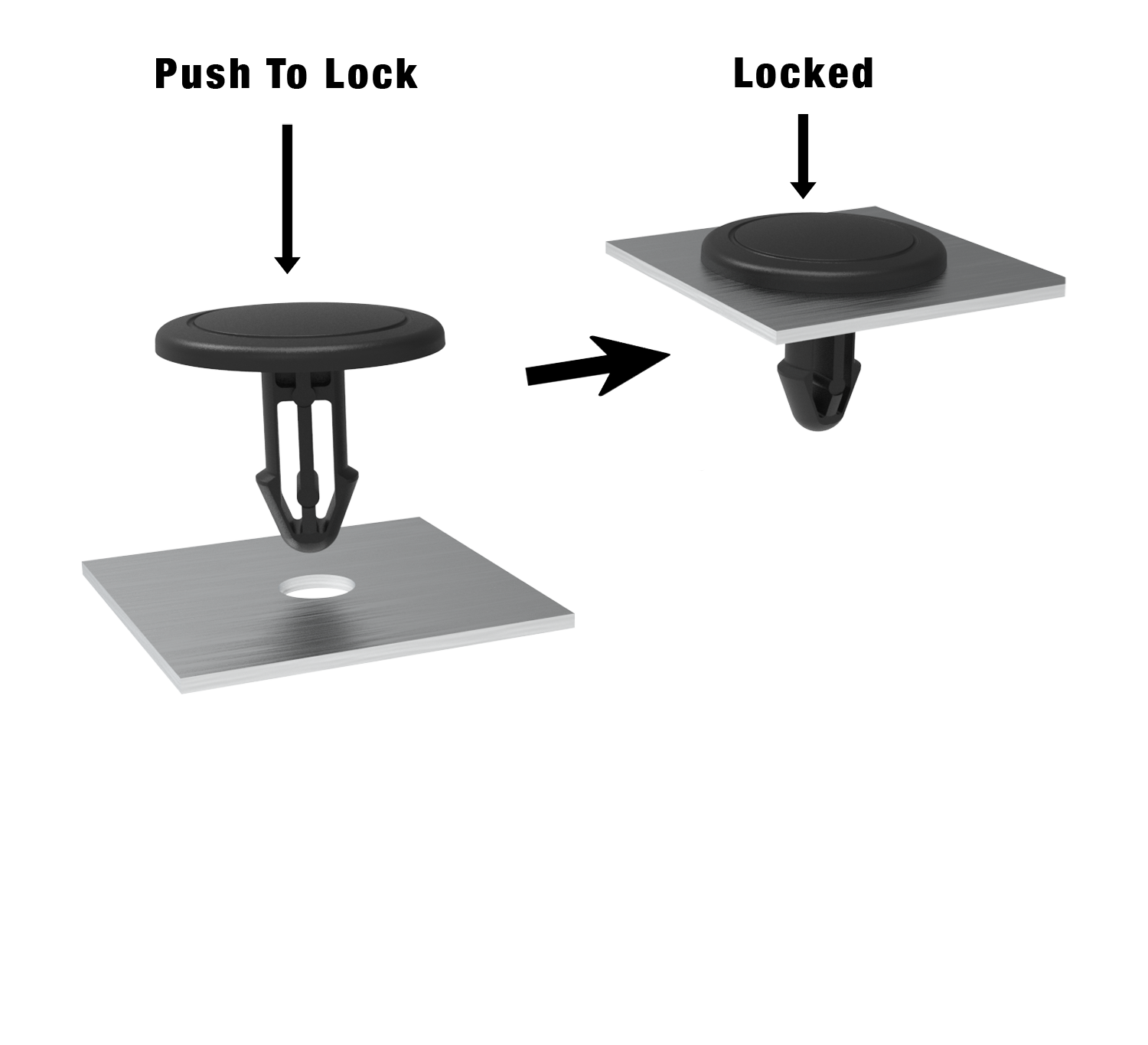

Single-operation attachment: The Canoe Clip installs in one quick step, which reduces man-hours and immediately boosts efficiency on the assembly line.
Optimized for light loads: Built specifically for lighter applications, it delivers consistent, reliable performance without unnecessary bulk.
Versatile fit: Thanks to its compact design, the Canoe Clip fits easily into small-diameter holes, making it adaptable to a wide range of assembly setups.
| 0080 | 3.2 ~ 3.6 | 1~2.5 | 7.5 | 1.5 | 9 | 3.1 | PA6 |
| 0079 | 3.2 ~ 3.6 | 2.5~5 | 7.5 | 1.5 | 13 | 3.1 | PA6 |
| 0074 | 3.3 ~ 3.6 | 1.6~2.2 | 7.5 | 1.5 | 7 | 2.5 | PA6 |
| 0075 | 3.3 ~ 3.6 | 2~3.1 | 7.5 | 1.5 | 8.8 | 2.8 | POM |
| 0085 | 3.3 ~ 3.6 | 2~3.1 | 7.5 | 1.5 | 9 | 3.2 | PA6 |
| 0076 | 3.3 ~ 3.6 | 3~4 | 7.5 | 1.5 | 11 | 3.4 | POM |
| 039P | 3.5 | 2.2 | 10 | 1.5 | 15 | 3.3 | PA6 |
| 1588 | 3.8 | 1.6~2.6 | 8 | 1.5 | 10 | 3.5 | PA6 |
| 253M | 4 | 1.6~2.6 | 10 | 1.5 | 10 | 3.5 | PA6 |
| 0456 | 4 | 1.6~2.6 | 10 | 1.5 | 10 | 3.5 | PA6 |
| 2E86 | 4.2 | 2 | 9 | 2 | 12 | 4 | PA6 |
| 10G1 | 4.7 | 2~2.7 | 14 | 2 | 10 | 4.5 | POM |
| 0077 | 4.8 ~ 5.2 | 2~5 | 11 | 1.5 | 13 | 4.8 | PA6 |
| 0410 | 5 | 1.5~1.8 | 11 | 1.5 | 9.5 | 4.5 | PA6 |
| 0110 | 5 | 2.5~3.5 | 11 | 1.5 | 15 | 4.5 | PA6 |
| 0111 | 5 | 2.5~3.5 | 14 | 1.5 | 15 | 4.5 | PA6 |
| 1779 | 5 | 3~5 | 11 | 1.5 | 13 | 4.9 | PA6 |
| 252J | 5.5 | 2~4.5 | 11 | 1.5 | 14.5 | 4.9 | PA6 |
| 0091 | 5.5 | 2~4.5 | 11 | 1.5 | 14.5 | 4.9 | PA6 |
| 0790 | 5.8 ~ 6.2 | 2~2.7 | 26 | 3 | 12 | 5 | PA6 |
| 16X6 | 6 | 5 | 13 | 1 | 10 | 4.4 | PA6 |
| 0712 | 6 | 5~5.6 | 20 | 2 | 12.5 | 5 | PA6 |
| 14F0 | 7 | 0.8 | 12 | 1.5 | 10.5 | 6 | PP |
| 11W2 | 7 | 5 | 15 | 3 | 14.5 | 4 | PA6 |
| 10V1 | 8 | 6.6 | 22 | 2.5 | 15.7 | 7.2 | PA6 |
| 0166 | 3.5 | 2 | 11.6 | 6 | 12.5 | 5.1 | PA6 |
| 36B5 | 4 | 2.6~3.6 | 8 | 1.5 | 6.6 | 3 | PA6 |
| 4Y08 | 4 | 3.1 | 8 | 1.5 | 8.5 | 3.2 | PA6 |
| 4316 | 4 | 10 | 12 | 2 | 17.8 | 3.8 | PA66 |
| 1257 | 4.2 | 2~2.2 | 10 | 1.5 | 10 | 3 | PP |
| 0421 | 4.5 | 0.8 | 10 | 2.5 | 16.5 | 6 | PA6 |
| 1517 | 4.8 | 7.5 | 12 | 1.5 | 14.7 | 4 | PA6 |
| 35M7 | 5 | 3.05~3.3 | 10 | 1.5 | 8 | 3.2 | POM |
| 399N | 5 | 3.6 | 10 | 1.5 | 8 | 3.2 | POM |
| 1963 | 5.4 | 2~2.6 | 14 | 1.5 | 13 | 5.2 | PA6 |
| 1A5Y | 5.5 | 3.5 | 13 | 1 | 11 | 5.3 | PA6 |
| 0725 | 5.5 | 3.5~4 | 13 | 1.5 | 15 | 5.4 | PA6 |
| 0938 | 6 | 2.7 | 16 | 1.6 | 15 | 5 | PA6 |
| 263A | 6 | 3.1 | 13 | 1.5 | 8 | 5.3 | PA6 |
| 0118 | 6 | 3.5 | 13 | 1.7 | 15 | 5 | PA6 |
| 1207 | 6 | 3.7 | 13 | 1.6 | 15 | 5.5 | PA6 |
| 3300 | 6 | 4 | 13 | 1.5 | 9.5 | 5.7 | PE |
| 0419 | 6 | 5 | 13 | 1.6 | 16.2 | 5 | PA6 |
| 4F05 | 6 | 5 | 13 | 3 | 16.5 | 5.6 | PA6 |
| 0693 | 6 | 5.6 | 13 | 1.6 | 17 | 5 | PA6 |
| 10X4 | 6 | 5.8~6.0 | 16 | 1.8 | 14 | 5.5 | PA6 |
| 0183 | 7 | 0.7 | 15 | 3 | 14.5 | 9 | PE |
| 1728 | 7 | 1.8 | 14 | 2 | 12 | 6 | PA6 |
| 1609 | 7 | 2.8 | 14 | 2 | 13 | 6 | PA6 |
| 4B02 | 7 | 3~3.4 | 14 | 1.8 | 11 | 6 | PA6 |
| 1D96 | 7 | 3.2~3.4 | 14 | 1.8 | 11 | 6 | PA6 |
| 0120 | 7 | 3.7 | 15 | 3 | 12.7 | 6.5 | PE |
| 2542 | 7 | 4 | 18 | 2 | 15.5 | 5.8 | PA66 |
| 0121 | 7 | 5 | 15 | 3 | 14.5 | 7 | PE |
| 0751 | 7 | 5 | 19 | 3 | 14.5 | 7 | PE |
| 4641 | 7 | 6.1 | 18 | 2 | 17.5 | 5.8 | PA66 |
| 2X65 | 7 | 8 | 18 | 2 | 19 | 5.8 | PA66 |
| 0119 | 7 | 10.5 | 15 | 3 | 20 | 6.5 | PE |
| 0660 | 7.5 | 6.8~7.3 | 12 | 2 | 17 | 6 | PA6 |
| 3218 | 8 | 5.3 | 15 | 2 | 18 | 5 | POM |
| 1771 | 8.5 | 3.6 | 26 | 1.5 | 8 | 8.3 | PA66 |
