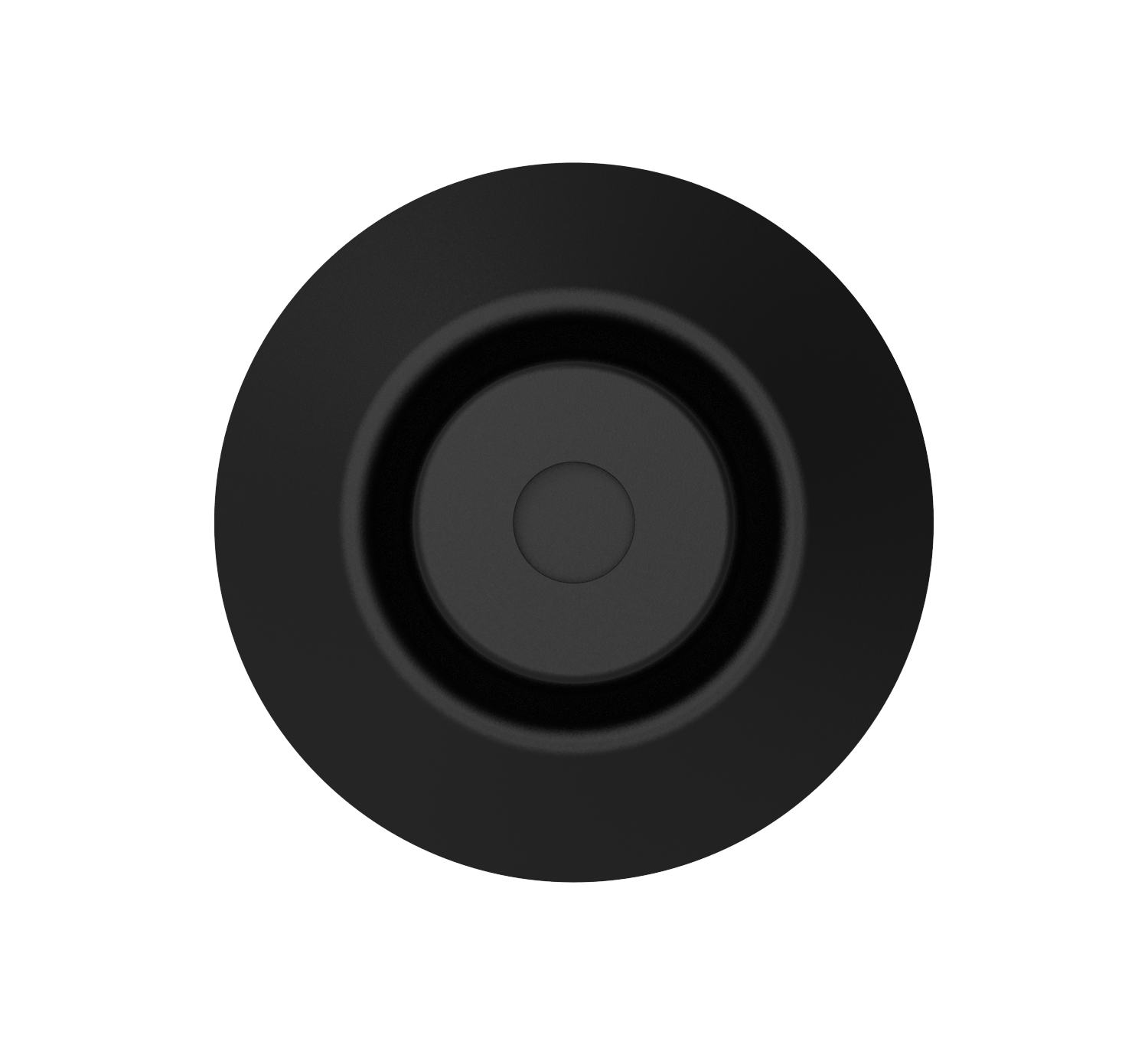

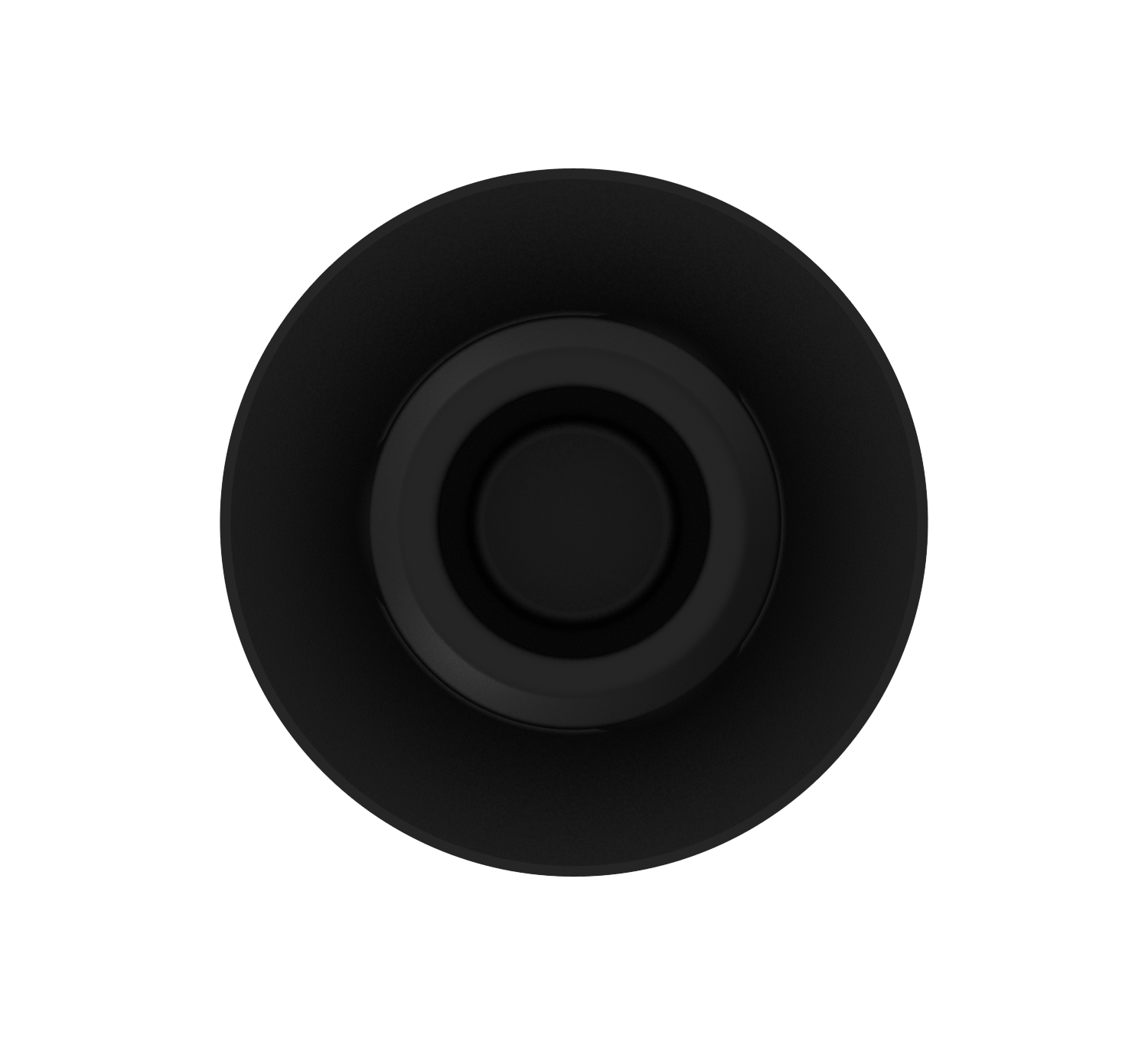

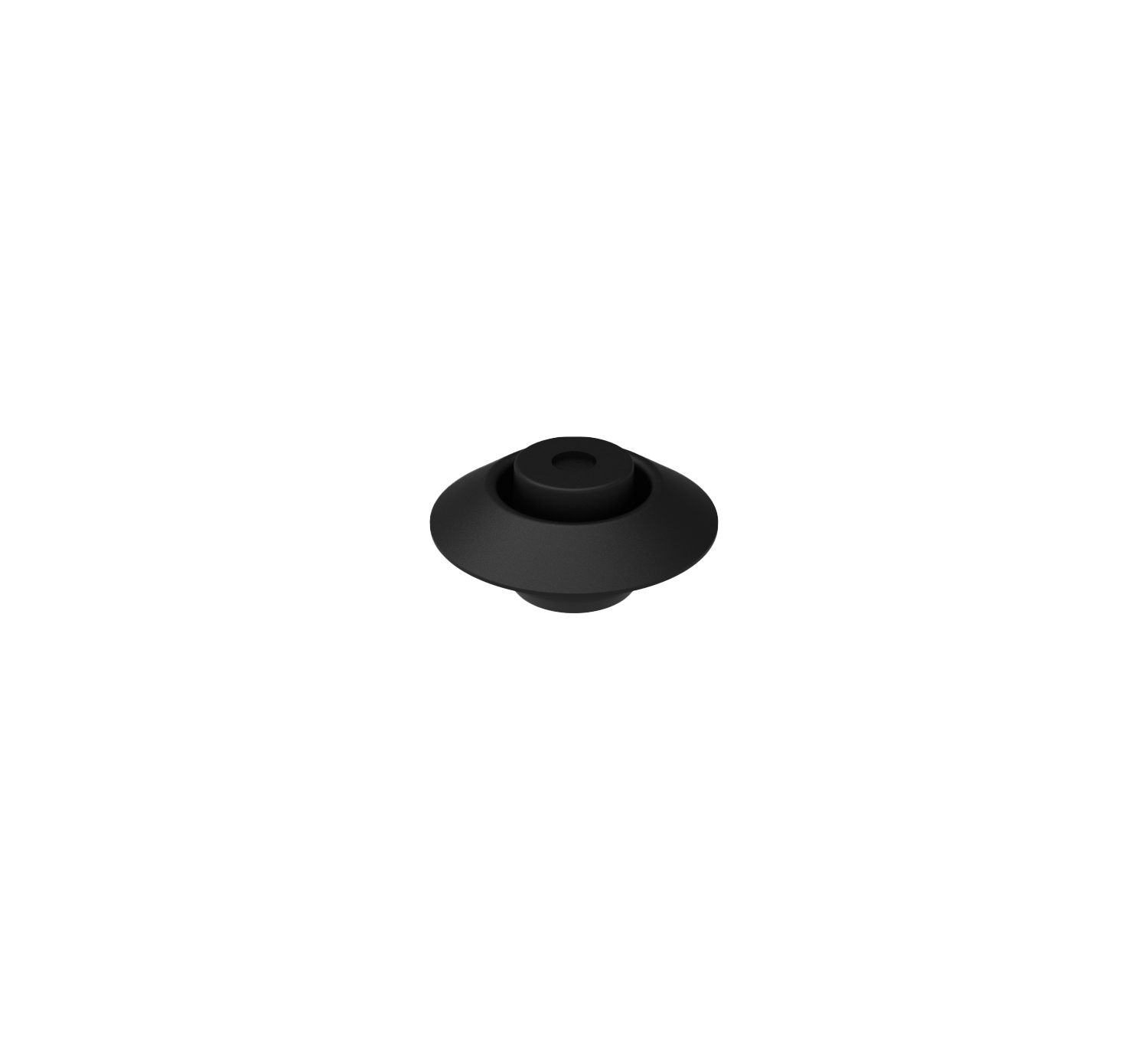

Hole Plugs are a top choice on the assembly line thanks to their smart design and versatile functionality. They enhance manufacturing efficiency and support styling flexibility across various applications. When your door or panel requires extra holes for assembly access, simply insert a Hole Plug to seal the gap, prevent water intrusion, and minimize vibration. As a result, you can close off plates in one smooth operation, cutting down both assembly time and labor costs. Plus, with multiple off-the-shelf sizes and fast “shoot and ship” availability from Nifco America, you’ll keep your production moving without delays. To learn more about this product, please contact us with any questions.

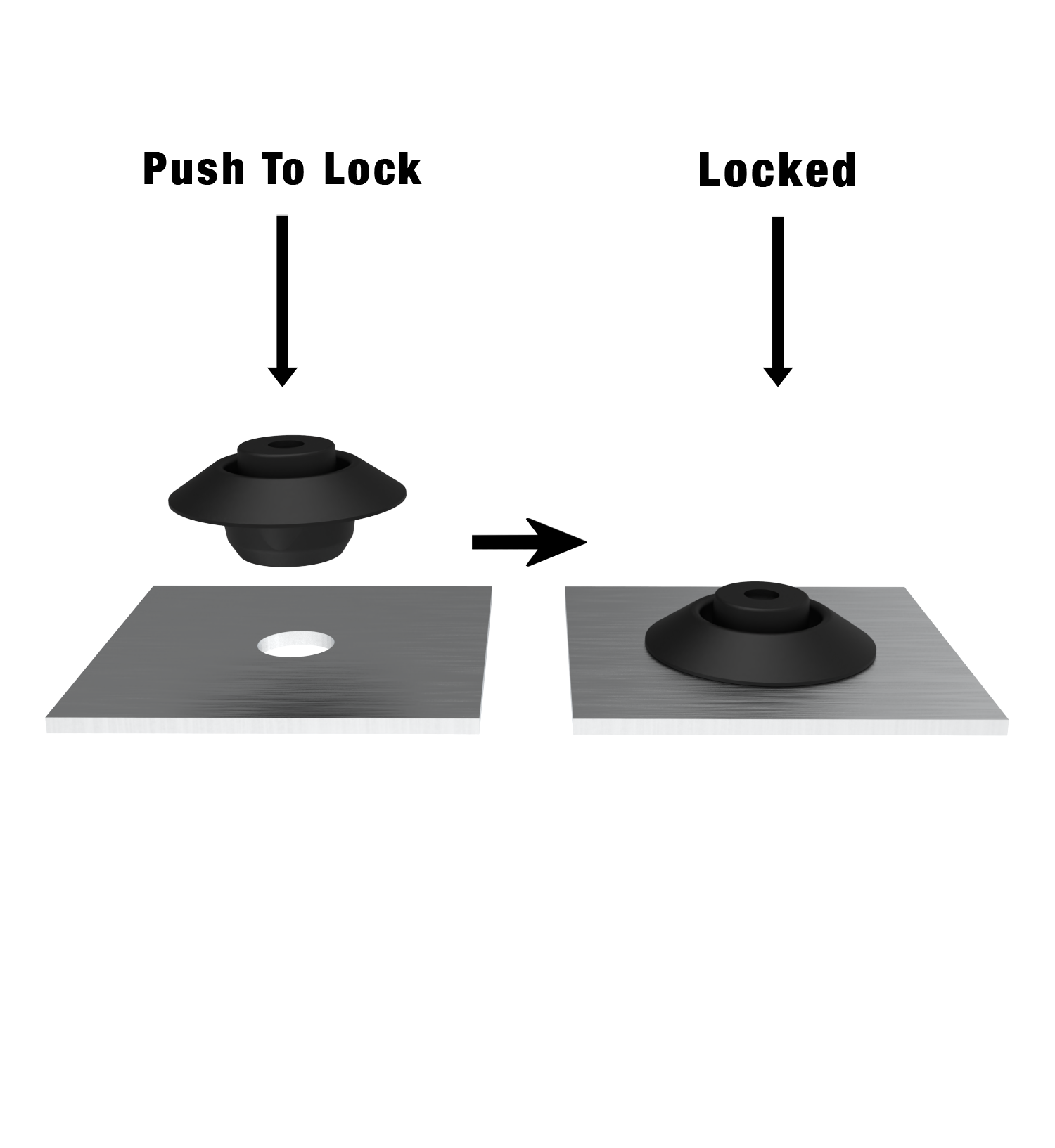

One-step installation: Installs in a single motion, speeding up assembly and significantly cutting labor costs.
Reliable sealing: Adapts to the shape of the fitting location to create a secure seal, offering enhanced protection and added functionality.
| 459A | 7 | 0.6 ~ 1.2 | 15 | 3 | 7.5 | 8.4 | TPE |
| 3F66 | 7 | 0.6 ~ 1.2 | 15 | 3 | 7.5 | 9 | PE |
| 15F5 | 7 | 0.6 ~ 1.8 | 15 | 3 | 7.5 | 9 | PE |
| 2F1K | 7 | 1.4 | 15 | 3 | 7.5 | 9 | PE |
| 3F67 | 8 | 0.6 ~ 1.2 | 16 | 3 | 7.5 | 10 | PE |
| 1T2J | 8 | 1.3 ~ 2.3 | 14 | 3 | 6.3 | 9.1 | TPE |
| 3W11 | 9 | 0.6 ~ 1.2 | 17 | 3 | 7.5 | 11 | PE |
| 2D46 | 10 | 0.6 ~ 0.8 | 16.2 | 3.6 | 7 | 12 | TPE |
| 407G | 10 | 0.6 ~ 0.8 | 16.2 | 3.6 | 7 | 12 | TPE |
| 3F68 | 10 | 0.6 ~ 1.2 | 18 | 3 | 7.5 | 12 | PE |
| 18U7 | 10 | 2 | 18 | 3.8 | 8 | 11.9 | TPE |
| 369Y | 11 | 0.6 ~ 1.8 | 19 | 3 | 7.5 | 13.2 | PE |
| 1E52 | 11 | 0.8 | 20 | 2.3 | 12.3 | 12.4 | PE |
| 3G25 | 12 | 0.6 ~ 1.2 | 20 | 3 | 7.5 | 14 | PE |
| 1T63 | 12 | 0.8 ~ 1.2 | 20.5 | 3.6 | 7 | 13.9 | PE |
| 4G34 | 12 | 1.6 | 20 | 3 | 8.1 | 14 | TPE |
| 26X2 | 13 | 1.8 | 22 | 2.6 | 6.2 | 14.9 | PE |
| 2X30 | 13.5 | 0.7 | 17.3 | 2.6 | 7 | 15.4 | PE |
| 17ZO | 14 | 0.6 ~ 1.2 | 22 | 3 | 7.5 | 16 | PE |
| 3V26 | 14 | 0.6 ~ 1.2 | 22 | 3 | 7.5 | 16 | PE |
| 3F69 | 15 | 0.6 ~ 1.2 | 23 | 3 | 7.5 | 17 | PE |
| 0F6A | 15 | 0.6 ~ 1.2 | 23.5 | 3 | 7 | 16.9 | TPE |
| 247K | 15 | 0.6 ~ 1.8 | 23 | 3 | 7.5 | 17.2 | PE |
| 1G70 | 15 | 0.8 ~ 1.2 | 23.5 | 3.6 | 7 | 16.9 | PE |
| 4471 | 15 | 0.8 ~ 1.2 | 24 | 2.6 | 5.4 | 15.3 | PE |
| 456A | 15 | 0.8 ~ 1.2 | 24 | 2.6 | 5.4 | 17.4 | PE |
| 293A | 16 | 0.75~1.1 | 21.5 | 2.2 | 6.1 | 17.3 | PE |
| 1F56 | 16 | 1.6 | 24.5 | 3.6 | 8.6 | 17.9 | PE |
| 3A94 | 16 | 2.6 ~ 3.2 | 24.5 | 3.6 | 10.2 | 17.9 | PE |
| 0G5B | 17 | 1.2 | 25.5 | 3 | 7 | 18.9 | TPE |
| 4R13 | 17 | 1.8 | 25.5 | 3.9 | 8.9 | 18.9 | PE |
| 3S71 | 17 | 2 | 25.5 | 3.6 | 8 | 18.9 | PE |
| 067K | 17.5 | 0.6~3.0 | 29.5 | 5.3 | 9.6 | 20.9 | TPE |
| 28E8 | 18 | 0.6 ~ 1.2 | 25 | 1.9 | 5.4 | 20.4 | PE |
| 1F57 | 18 | 0.8 | 26.5 | 3.6 | 8 | 19.9 | PE |
| 3V50 | 18 | 1.4 | 27 | 3.1 | 6 | 19.4 | PE |
| 3X76 | 18 | 2 | 26.5 | 3.6 | 9.2 | 19.9 | PE |
| 2E75 | 20 | 0.6 ~ 0.8 | 25.8 | 3.6 | 7 | 21.9 | TPE |
| 4Y46 | 20 | 0.6 ~ 0.8 | 25.8 | 3.6 | 7 | 21.9 | PET |
| 063E | 20 | 0.6 ~ 4.0 | 32 | 6.3 | 10.6 | 23.4 | PE |
| 1D17 | 20 | 0.8 ~ 1.2 | 28.5 | 3.6 | 7 | 21.9 | PE |
| 4272 | 20 | 0.8 ~ 1.2 | 29 | 2.6 | 7.5 | 22 | PE |
| 1F58 | 20 | 1.6 | 28.5 | 3.6 | 7.8 | 21.9 | PE |
| 26X3 | 20 | 1.8 | 29 | 2.6 | 6.2 | 21.9 | PE |
| 1U52 | 20.0 X 50.0 | 0.7 | 28.0 X 58.0 | 2.5 | 5.5 | 21.0 X 50.3 | PE |
| 349S | 20.4 | 0.6 ~ 0.8 | 25.8 | 3.9 | 7 | 21.9 | PE |
| 2K1W | 20.7 | 0.7 ~ 1.2 | 25.8 | 3.6 | 7 | 21.9 | TPE |
| 355F | 21 | 0.65 | 29 | 2.3 | 5.7 | 23.1 | PE |
| 3F59 | 22 | 0.7 | 27 | 2.5 | 5.4 | 24 | PE |
| 420J | 22 | 1.0 ~ 1.4 | 30.5 | 2.6 | 6.7 | 23.9 | PE |
| 4K23 | 23 | 0.6 ~ 1.2 | 30 | 2.6 | 5.4 | 23.3 | PE |
| 4744 | 23 | 0.8 ~ 1.2 | 32 | 2.6 | 5.4 | 25.4 | PE |
| 32N6 | 23 | 1.6 | 31.3 | 3.9 | 8.9 | 24.9 | PE |
| 3S70 | 25 | 0.6 | 34 | 3.1 | 5.4 | 26.9 | PE |
| 1D22 | 25 | 0.8 ~ 1.2 | 33.5 | 3.6 | 7 | 26.9 | PE |
| 4472 | 25 | 0.8 ~ 1.2 | 34 | 2.6 | 5.4 | 27.4 | PE |
| 1G11 | 25 | 1.6 | 33.5 | 3.6 | 7.8 | 26.9 | PE |
| 1Y50 | 25 | 3.8 | 33.5 | 3.7 | 10 | 26.9 | PE |
| 4298 | 30 | 0.8 | 39 | 2.6 | 5.4 | 31 | PE |
| 3803 | 30 | 0.8 ~ 1.2 | 38.5 | 3.6 | 7 | 31.9 | PE |
| 4N46 | 30 | 2 | 39 | 3.7 | 6.6 | 31.4 | PE |
| 28R6 | 32 | 1.8 ~ 2.0 | 41 | 2.6 | 6.2 | 33.9 | TPE |
| 002M | 34 | 0.7 ~ 1.0 | 47.6 | 4.3 | 9.5 | 36.5 | PVC |
| 0W2D | 34.0 X 70.0 | 0.7 ~ 1.0 | 78.3 X 42.3 | 3.4 | 7.1 | 71.9 X 35.9 | PE |
| 4830 | 35 | 0.8 ~ 1.2 | 43.5 | 3.6 | 7 | 36.9 | PE |
| 1Q60 | 40 | 0.8 ~ 1.2 | 48.5 | 3.6 | 7 | 41.9 | PE |
| 1K8X | 40 | 6.0 ~ 7.0 | 56 | 2.7 | 12.3 | 47.6 | PE |
| 1A0S | 44.0 X 35.0 | 1.8 | 53.2 X 44.2 | 3.6 | 7.5 | 44.2 X 35.2 | PE |
