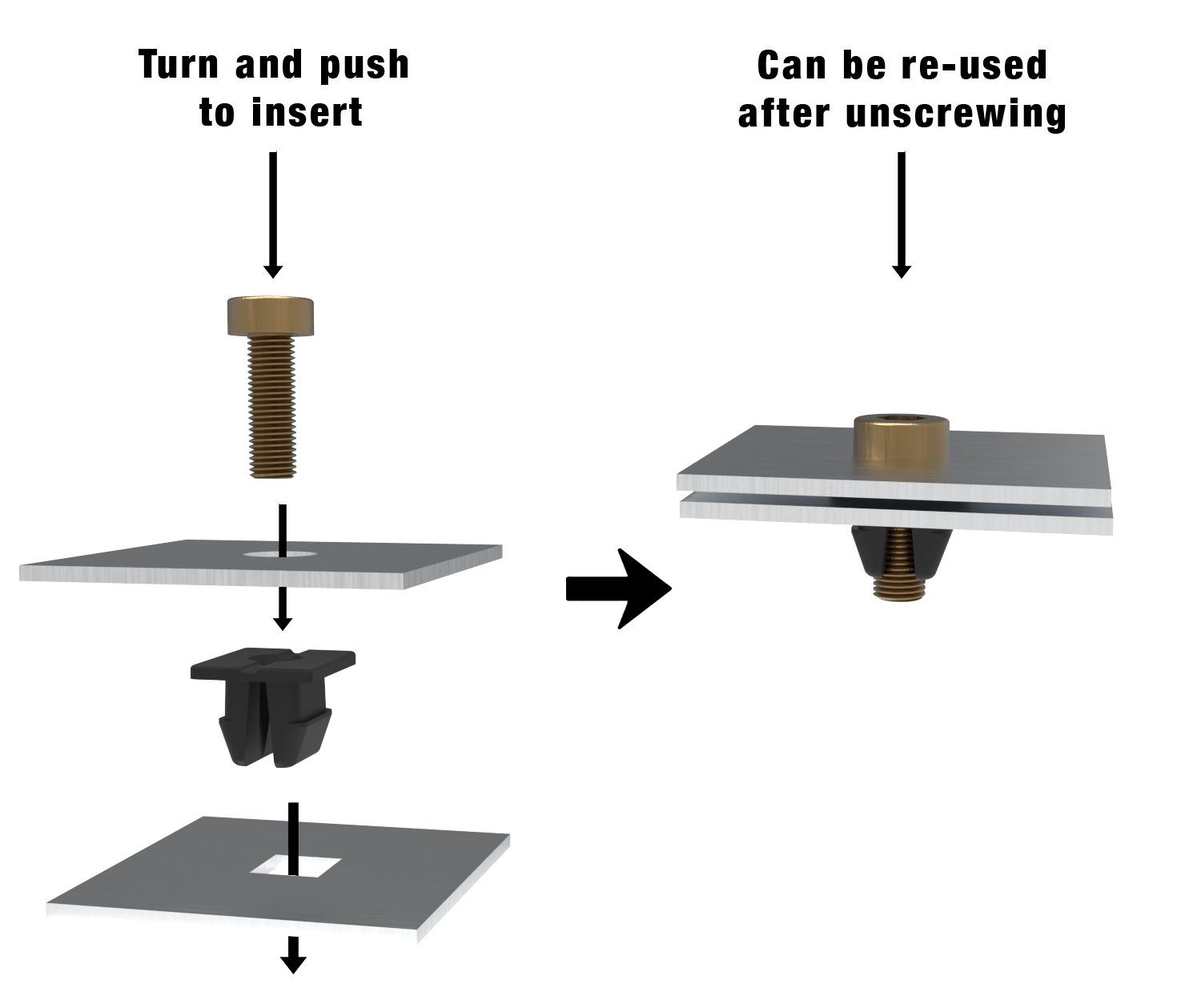

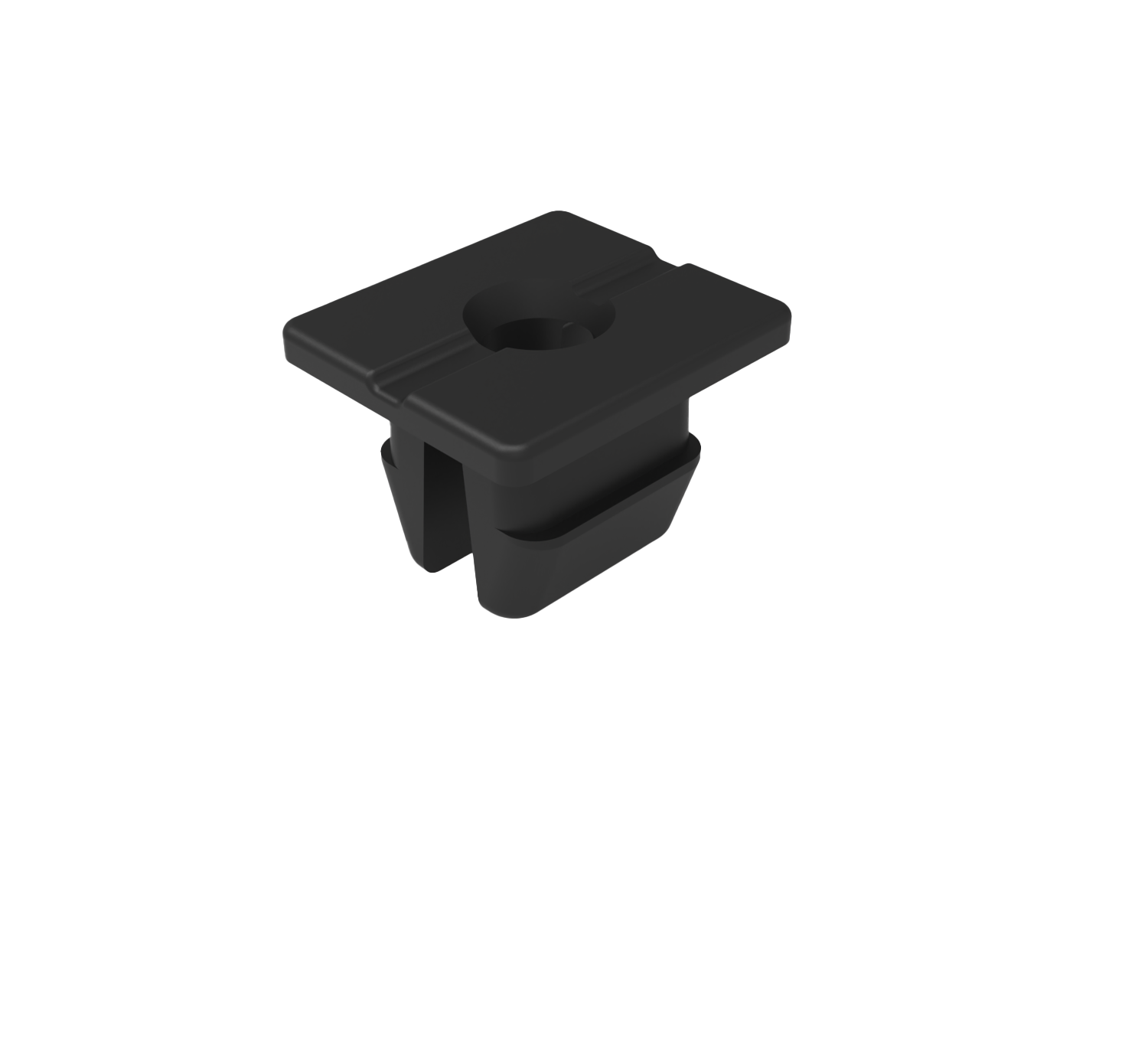

The screw grommet offers a smart fastening solution with single-side installation, making assembly faster and more efficient. Acting as a built-in nut, it delivers high holding strength for a secure and dependable fit. Its integrated flange also functions as a spacer, adding versatility for various applications. Additionally, the screw grommet can be unscrewed and reused, making it a cost-effective and sustainable choice for manufacturers seeking long-term value and performance. For more information on how this product can enhance your assembly process, contact us today to discuss your specific project needs.
Single-side operation: Acts as a built-in nut, enabling fast installation from one side and streamlining the overall assembly process.
High holding strength: Secures components firmly in place, delivering reliable performance even in demanding applications.
Dual-purpose flange: Functions as both a flange and a spacer, adding flexibility to various assembly configurations.
Reusable design: Easily unscrews for reuse, promoting sustainability and reducing material waste over time.
| 2315 | M3 | 6.2 | 0.7 ~ 1.5 | 0.8 | 6 | 9.5 | PA6 |
| 3367 | M3 | 6.2 | 0.7 ~ 1.5 | 0.8 | 14 | 9.5 | PA6 |
| 2144 | M4 | 6.0 X 9.0 | 0.7 ~ 1.5 | 1.2 | 7.5 | 12.0 X 14 | PA6 |
| 161E | M4 | 6.0 X 14.5 | 0.8 | 1.5 | 7.5 | 12.0 X 18 | PA6 |
| 1A56 | M4 | 6.0 X 14.5 | 0.8 | 1.5 | 7.5 | 12.0 X 18 | PA6 |
| 1T04 | M4 | 6.6 X 10.0 | 0.8 | 0.8 | 4.2 | 9.5 X 12 | PA6 |
| 16X0 | M4 | 6.7 | 0.6 ~ 2.3 | 0.8 | 6.1 | 9.5 | PA6 |
| 1852 | M4 | 6.7 | 0.7 ~ 2.3 | 0.8 | 7.1 | 9 | PA6 |
| 0100 | M4 | 6.7 | 0.8 ~ 2.3 | 0.8 | 7.1 | 9.5 | PA6 |
| 251H | M4 | 6.7 | 0.8 ~ 2.3 | 0.8 | 7.1 | 9.5 | PA6 |
| 4092 | M4 | 6.7 | 0.8 ~ 2.3 | 0.8 | 7.1 | 9.5 | PA6 |
| 0217 | M4 | 6.7 X 7.2 | 0.8 ~ 2.5 | 2 | 7.1 | 11 | PA6 |
| 0441 | M4 | 6.8 | 0.7 ~ 2.5 | 1.5 | 7.1 | 15 | PA6 |
| 0133 | M4 | 6.8 | 0.8 ~ 2.5 | 1.3 | 7.1 | 10 | PA6 |
| 3267 | M4 | 6.8 | 0.8 ~ 2.5 | 1.3 | 7.1 | 10 | PA6 |
| 3H71 | M4 | 6.8 | 1 | 1.3 | 7.1 | 14 | PA6 |
| 1Y70 | M4 | 6.8 X 11.0 | 1.0 ~ 1.2 | 1.2 | 7.5 | 10.0 X 12 | PA6 |
| 2R14 | M4 | 7 | 0.8 | 0.8 | 8 | 14 | PA6 |
| 2324 | M4 | 7 | 0.8 | 1.3 | 9.9 | 10 | PA66 |
| 3551 | M4 | 7 | 0.8 | 3.5 | 7.1 | 10 | PA6 |
| 4502 | M4 | 7 | 0.8 ~ 2.0 | 1.3 | 14.3 | 10 | PA6 |
| 1U05 | M4 | 7 | 0.8 ~ 2.0 | 2.5 | 7 | 10 | PA6 |
| 0135 | M4 | 7 | 0.8 ~ 3.0 | 2.5 | 8 | 12 | PA6 |
| 0367 | M4 | 7 | 1.0 ~ 2.0 | 3.5 | 8 | 13 | PA6 |
| 0280 | M4 | 7 | 1.2 | 5 | 7.1 | 13 | PA6 |
| 2531 | M4 | 7 | 1.6 ~ 2.0 | 1.3 | 5 | 10 | PA6 |
| 39X2 | M4 | 7.0 X 9.0 | 0.8 | 1.3 | 7.5 | 14 | PA6 |
| 5193 | M4 | 7.0 X 10.0 | 0.8 ~ 1.2 | 0.8 | 7 | 11.0 X 14.0 | PA6 |
| 0172 | M4 | 7.2 | 1 | 2.5 | 7 | 13 | PA66 |
| 2N48 | M4 | 7.5 | 0.7 ~ 2.0 | 1 | 8 | 12 | PA6 |
| 0258 | M4 | 8.4 | 1.0 ~ 2.0 | 3 | 6 | 12 | PA6 |
| 0431 | M4 | 8.5 | 0.8 ~ 2.0 | 2.3 | 6.7 | 13 | PA6 |
| 2G45 | M4 | 8.5 | 0.8 ~ 3.0 | 2 | 8 | 12 | PA6 |
| 4A32 | M4 | 8.5 X 12.0 | 0.8 ~ 1.6 | 2 | 7 | 13.0 X 17.0 | PA6 |
| 3S40 | M4 | 9 | 0.7 | 8.5 | 7 | 14 | PA6 |
| 3Y66 | M4 | 9 | 0.7 | 14 | 7 | 12 | PA6 |
| 1D94 | M4 | 9 | 4.5 | 1.5 | 11.5 | 12 | PA6 |
| 2680 | M 4.5 | 6.0 X 10.5 | 0.8 | 1.5 | 7.5 | 12.0 X 16.0 | PA6 |
| 4Z69 | M 4.5 | 7.0 X 13.0 | 0.7 | 2.3 | 5.5 | 18.0 X 12.0 | PA6 |
| 1236 | M5 | 6.0X7.0 | 2.5 | 1.2 | 7.5 | 12.0 X 7.0 | PA6 |
| 4V73 | M5 | 6.8 | 0.7 | 4 | 3 | 11 | POM |
| 049P | M5 | 7 | 1.3 ~ 2.2 | 1.3 | 10 | 11.5 | PA6 |
| 0K8G | M5 | 8 | 0.55 ~ 0.75 | 1.3 | 7 | 16 | PA6 |
| 0201 | M5 | 8 | 0.7 ~ 3.0 | 1.5 | 7.5 | 12 | PA6 |
| 1144 | M5 | 8 | 0.8 ~ 1.0 | 1.3 | 7 | 16 | PA6 |
| 4202 | M5 | 9 | 0.8 ~ 3.0 | 1.5 | 10 | 12 | PA6 |
| 1L22 | M5 | 8 | 0.8 ~ 3.5 | 0.8 | 7.5 | 12.0 X 13.0 | PA6 |
| 0153 | M5 | 8 | 0.8 ~ 3.5 | 0.8 | 7.5 | 13 | PA6 |
| 2560 | M5 | 8 | 0.8 ~ 3.5 | 2.8 | 7.5 | 13 | PA6 |
| 2Y09 | M5 | 8 | 0.8 ~ 3.6 | 2 | 7.5 | 16 | PA6 |
| 4451 | M5 | 8.5 | 0.6 | 1 | 8 | 13 | PA6 |
| 1A57 | M5 | 8.5 | 0.7 ~ 1.0 | 2 | 6 | 17 | PA6 |
| 0196 | M5 | 8.5 | 0.8 | 2 | 7 | 13 | PA6 |
| 0584 | M5 | 8.5 | 0.8 ~ 2.0 | 7.3 | 7.7 | 13 | PA6 |
| 0136 | M5 | 8.5 | 0.8 ~ 2.5 | 2.3 | 7.7 | 13 | PA6 |
| 1868 | M5 | 8.5 | 1.0 ~ 2.5 | 2 | 8 | 13 | PA6 |
| 2S6B | M5 | 8.5 X 11.0 | 0.8 | 8.8 | 6.7 | 13.0 X 16.0 | PA6 |
| 4808 | M5 | 8.5 X 11.0 | 0.8 | 8.5 | 7 | 13.0 X 16.0 | PA6 |
| 35W7 | M5 | 8.5 X 13.0 | 1.6 | 1.3 | 7 | 13.0 X 17.0 | PA6 |
| 43S7 | M5 | 9 | 0.65 | 2 | 22 | 20 | PA6 |
| 1C59 | M5 | 9 | 0.7 | 1 | 10 | 13 | PA6 |
| 30W2 | M5 | 9 | 0.7 | 4.5 | 7 | 14 | POM |
| 2982 | M5 | 9 | 0.7 ~ 2.0 | 2 | 7 | 14 | PA6 |
| 2980 | M5 | 9 | 0.7 ~ 2.5 | 1.5 | 10.5 | 12 | PA6 |
| 17S3 | M5 | 9 | 0.75 | 4 | 7.5 | 14 | PA6 |
| 0581 | M5 | 9 | 0.8 | 2 | 7 | 14 | PA6 |
| 137V | M5 | 9 | 0.8 | 4 | 7 | 14 | PA6 |
| 11W6 | M5 | 9 | 0.8 ~ 1.6 | 1.5 | 10.5 | 12 | PA6 |
| 3A57 | M5 | 9 | 0.8 ~ 3.0 | 1.5 | 10 | 12 | PA6 |
| 2319 | M5 | 9 | 1.5 ~ 2.0 | 1 | 10 | 17 | PA6 |
| 0284 | M5 | 9 | 2.0 ~ 2.5 | 1 | 10 | 17 | PA6 |
| 1673 | M5 | 9.0 X 11.5 | 0.7 ~ 1.6 | 1.5 | 10.5 | 12 | PA6 |
| 1V27 | M5 | 9.5 X 11.0 | 0.8 ~ 2.0 | 1.5 | 7.5 | 14.0 X 16.0 | PA6 |
| 27S3 | M6 | 8.0 X 10.0 | 0.75 | 1 | 10 | 13.0 X 15.0 | PA66 |
| 035J | M6 | 8.5 | 0.6 ~ 1.0 | 2 | 8 | 15 | PA6 |
| 1Z19 | M6 | 8.5 | 0.7 ~ 3.0 | 1 | 10 | 15 | PA6 |
| 3244 | M6 | 8.5 | 0.8 | 2 | 8 | 15 | PA6 |
| 3V02 | M6 | 8.5 | 1.2 ~ 2.6 | 2 | 7 | 18 | PA66 |
| 26K0 | M6 | 8.5 X 11.0 | 0.7 | 11 | 8 | 13.0 X 16.0 | PA6 |
| 4U20 | M6 | 8.5 X 11.0 | 0.7 | 13.3 | 7.7 | 13.0 X 16.0 | PA6 |
| 1162 | M6 | 8.5 X 11.0 | 0.7 ~ 2.5 | 2 | 8 | 13.0 X 15.0 | PA6 |
| 2Y02 | M6 | 8.5 X 11.5 | 0.8 | 10 | 7 | 13.0 X 16.0 | PA6 |
| 49F5 | M6 | 9 | 0.7 ~ 0.9 | 2 | 7 | 14 | PA6 |
| 2443 | M6 | 9 | 0.7 | 2.5 | 8 | 16 | PA6 |
| 18J6 | M6 | 9 | 0.8 | 3.5 | 8 | 14 | PBT |
| 3X14 | M6 | 9 | 0.8 | 4.5 | 10 | 16.5 | PA6 |
| 1Y77 | M6 | 9 | 0.8 | 1 | 10 | 17 | PA6 |
| 1672 | M6 | 9 | 0.8 | 4.5 | 10 | 16 | PA6 |
| 1N70 | M6 | 9 | 1 | 2.5 | 10 | 22 | PA6 |
| 0799 | M6 | 9 | 1.6 | 2.5 | 8 | 16 | PA6 |
| 0R8D | M6 | 9 | 2.6 | 1 | 10 | 21 | PA6 |
| 2K7B | M6 | 9 | 2.7 | 1 | 10 | 21 | PA6 |
| 409V | M6 | 10 | 1.4 | 2 | 11 | 20 | PA6 |
