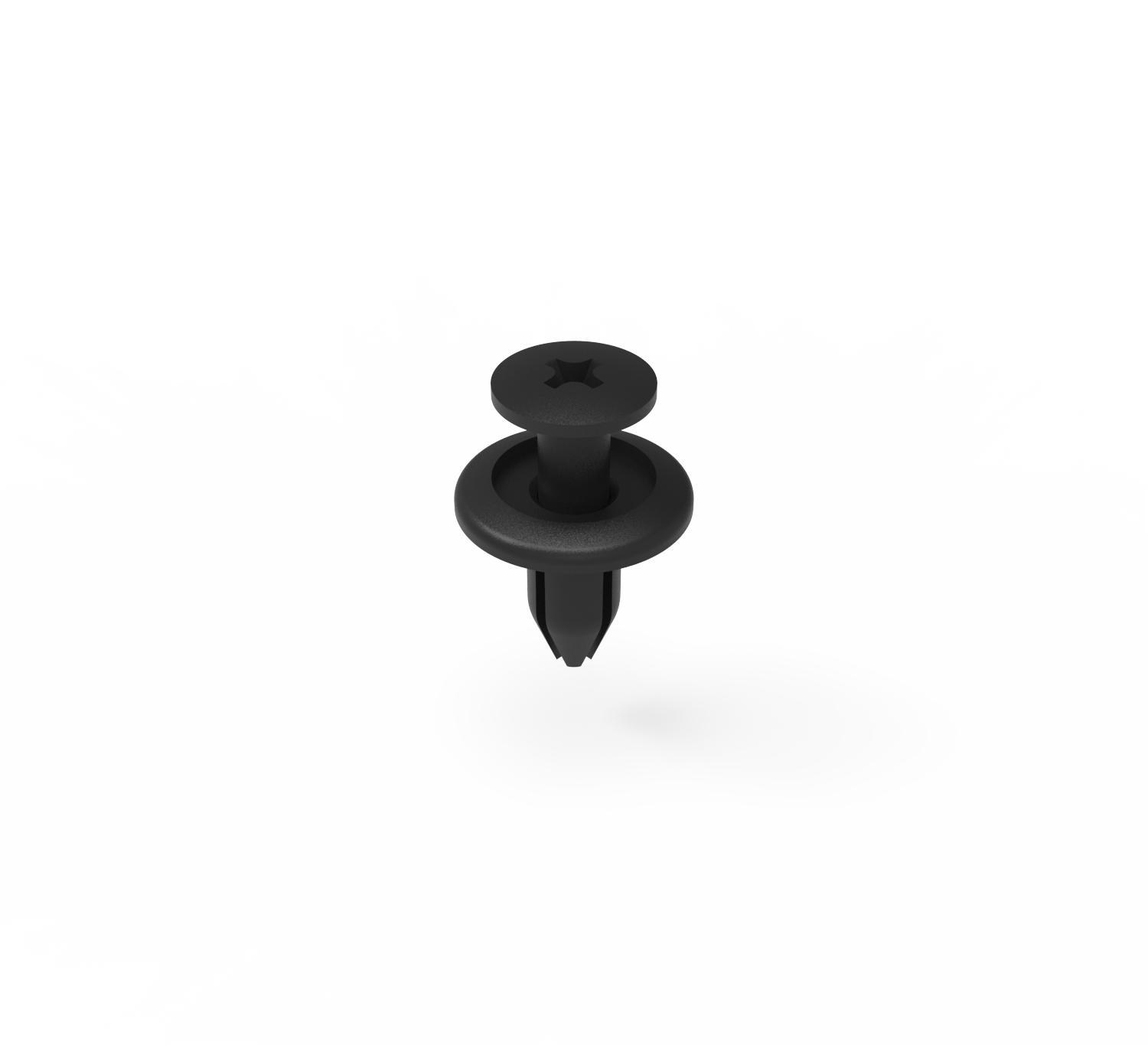

A scrivet, short for screw rivet, combines the strength of a rivet with the convenience of a screw, making it a versatile fastener for various applications. Similar to our push pull rivet, this off-the-shelf solution delivers high retention force and secure fastening, especially when attaching panels like trim boards. Installation and removal are simple with a Phillips screwdriver, allowing for quick serviceability. Designed by Nifco America engineers, the scrivet is reusable, enabling efficient maintenance without replacing the fastener—ideal for applications that demand both durability and convenience. Click here to contact us about this product.

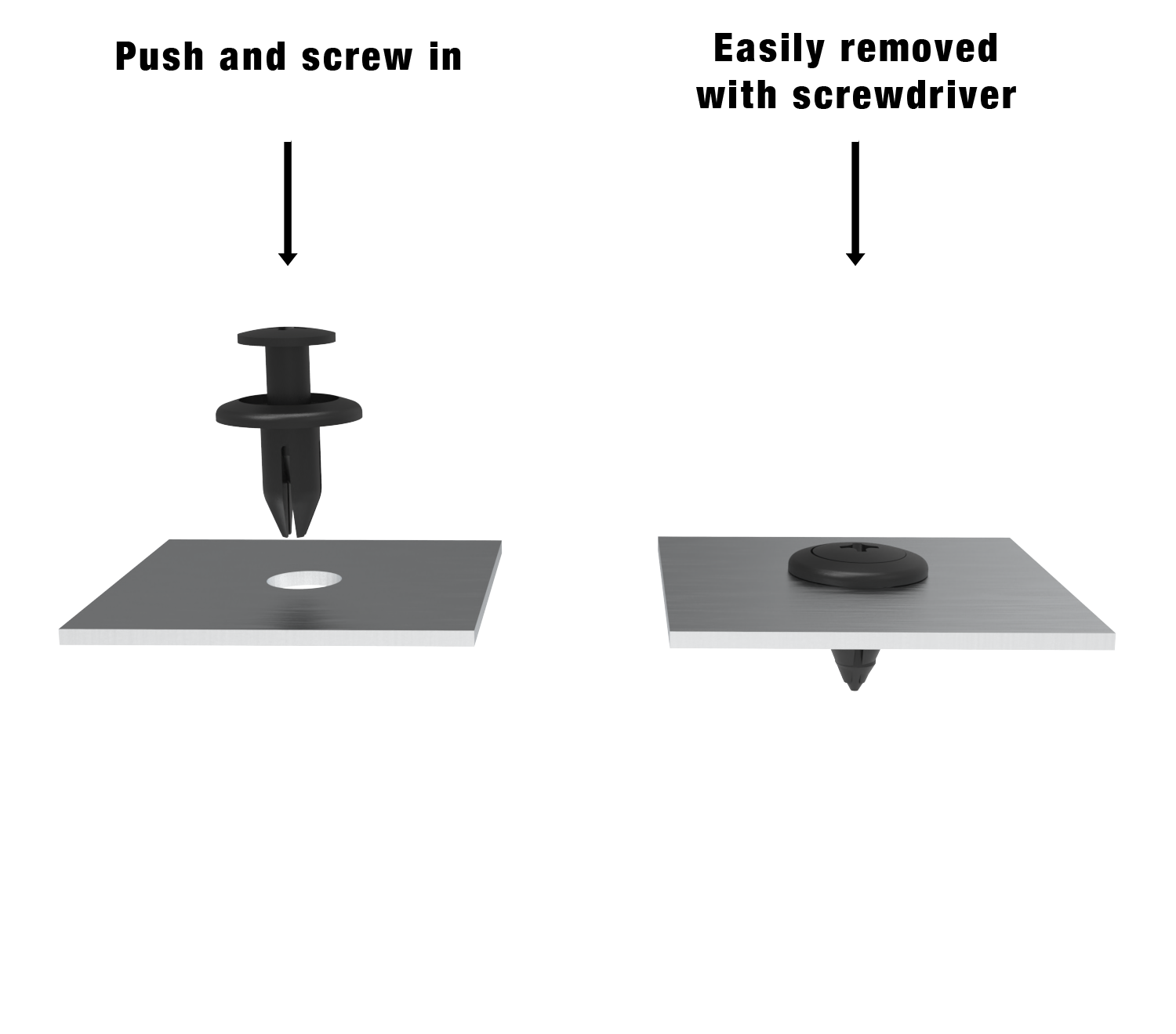

Easy reattachment: You can repeatedly remove and reattach the component using a Phillips screwdriver, which makes assembly and adjustments quick and flexible.
High retention force: The design delivers a strong, secure hold, so it performs reliably even under demanding conditions.
Adjustable connection: After attachment, you can easily tighten or loosen the connection, providing the versatility needed for a wide range of applications.
| 1A79 | 6 | 3.3~6 | 8 | 2.6 | 11 | 18 | 14 | PA6 |
| 4890 | 6 | 3.3~6 | 8 | 3 | 11 | 14 | 14 | PA6 |
| 1L61 | 8 | 4.8 | 13.2 | 3.5 | 13.4 | 22 | PA12 + POM | |
| 3S35 | 5 | 0.7~1.9 | 6.5 | 2 | 6.5 | 11 | 11.1 | PA6 |
| 16A8 | 5 | 2.23~2.57 | 6.5 | 1.8 | 6 | 16.5 | 7.7 | PA6 |
| 3976 | 5 | 2.5 | 6.5 | 2 | 7 | 9 | 9.8 | PA6 |
| 4Z54 | 5 | 2.5~3 | 9 | 2 | 7 | 12 | 9.8 | PA6 |
| 1X31 | 5 | 3~4.5 | 6.5 | 2 | 9 | 10 | 12.2 | PA6 |
| 49KB | 5 | 3~5 | 110 | 2 | 10 | 16 | 9.8 | POM+PA6 |
| 3X05 | 5 | 3.5 | 6.4 | 2 | 7.2 | 11 | 11.8 | PA6 |
| 3W01 | 5 | 4~5 | 6.4 | 2 | 8 | 1 | 9.8 | PA6 |
| 20F5 | 5 | 4.2~7.2 | 6.5 | 2 | 12 | 10 | 15.3 | POM+PA6 |
| 4869 | 5 | 4.2~5.2 | 6.5 | 2 | 9.7 | 10 | 12.5 | PA6 |
| 19W8 | 5 | 4.2~5.5 | 6.5 | 3 | 10 | 10 | 14 | POM+PA6 |
| 2D52 | 6 | 3.1 | 8 | 2.6 | 13 | 18 | 13 | PBT |
| 39K5 | 6 | 3.3~6 | 8 | 2.8 | 11 | 18 | 14 | PA6 |
| 4261 | 6 | 3.7 | 9 | 2.8 | 11 | 15 | 16.8 | PA6 |
| 2A40 | 6 | 4~6 | 10 | 2.5 | 10.5 | 10 | 13 | PA6 |
| 2720 | 6 | 4.5 | 9 | 5 | 10 | 18 X 12 | 18 | PA6 |
| 4263 | 6 | 5.5~6.5 | 9 | 2.8 | 13.5 | 15 | 16.8 | PA6 |
| 498V | 6 | 7.45 | 9 | 2.8 | 13.8 | 15 | 15 | PA6 |
| 3867 | 6.2~7 | 3~4.5 | 10 | 2.7 | 12.5 | 15 | 14.5 | PA6 |
| 3N97 | 6.7 | 3~4 | 7.8 | 2.8 | 13 | 15 | 15.8 | PA6 |
| 15Y2 | 6.7 | 6~7 | 7.8 | 3.3 | 16 | 17 | 18.8 | PA6 |
| 13W0 | 7 | 1.9~2.2 | 78 | 2.8 | 11 | 15 | 13.8 | PA6 |
| 5102 | 7 | 1.6~3 | 10 | 2.5 | 12 | 14 | 14 | PA6 |
| 47X2 | 7 | 1.6~3 | 10 | 2.5 | 12 | 20 | 14 | PA6 |
| 2N80 | 7 | 2.2 | 10 | 3.3 | 8.5 | 18 | 13.5 | PA6 |
| 3Z15 | 7 | 3.6 | 10 | 2.7 | 8.5 | 15 | 11.5 | PA6 |
| 1G03 | 7 | 4~5.5 | 10 | 4 | 13.5 | 17 | 17 | PA6+PA66 |
| 1W34 | 7 | 4~5.5 | 10 | 4 | 13.5 | 17 | 17 | PA6+PA66 |
| 4T65 | 7 | 5~6.5 | 10 | 2.5 | 13.5 | 10 | 16.5 | PA6 |
| 1B06 | 7 | 7~8 | 10 | 3.3 | 11 | 18 | 15.2 | PA6 |
| 1T75 | 7.5 | 5 | 7.8 | 3 | 13 | 14 | 15.8 | PA6 |
| 4P79 | 8 | 3.4 | 7.8 | 2.5 | 12.1 | 12.4 | 15.5 | PA6 |
| 4E67 | 8 | 3.5~5.5 | 7.8 | 2.5 | 12 | 12.4 | 15.5 | PA6 |
| 244E | 8 | 1.8~3.3 | 9.8 | 3 | 8.5 | 20 | 14 | PA6 |
| 3885 | 8 | 1.8~3.3 | 9.8 | 3 | 8.5 | 20 | 14 | PA6 |
| 48Y3 | 8 | 2.3~4.8 | 9.8 | 3 | 9 | 18 | 15 | PA12 |
| 14F8 | 8 | 2.5 | 12 | 4.5 | 8.5 | 20 | 15.5 | PP+PA6 |
| 2A95 | 8 | 3~4 | 9.8 | 3 | 8.5 | 16 | 14 | PA6 |
| 3820 | 8 | 3.3~4.8 | 9.8 | 3 | 9 | 18 | 15 | PA6 |
| 12G6 | 8 | 4.3 | 9.8 | 3 | 9 | 18 | 15 | PA6 |
| 41T2 | 8 | 4~6.6 | 15 | 3.5 | 9.5 | 20 | 24 | PA6 |
| 2466 | 8 | 4.8 | 9.8 | 2.7 | 20 | 17.5 | 17.8 | POM+PA6 |
| 1N17 | 8 | 13 | 9.8 | 3 | 20 | 20 | 26.5 | PA6 |
| 42D8 | 8 | 18.5~21 | 9.8 | 3 | 25.5 | 20 | 31.5 | PA6 |
| 1A89 | 8.2 | 5.4~6.4 | 9.8 | 3.5 | 15.5 | 20 | 21 | PP+PA6 |
| 4X49 | 8.4 | 2.3~6.5 | 10.8 | 2.9 | 11.5 | 18 | 18.3 | PC |
| 1Z34 | 8.4 | 3.4~5.5 | 10.8 | 3 | 10.8 | 18 | 15.5 | PA6 |
| 001Y | 8.5 | 6.5 | 9.9 | 2.5 | 13 | 18 | 16.5 | PA6 |
| 4S60 | 8.5 | 6.5 | 9.9 | 2.5 | 13 | 18 | 16.5 | PA6 |
| 3423 | 8.5 | 2.7~4 | 10.8 | 2.9 | 8.6 | 16 | 14.5 | PA6 |
| 4726 | 8.5 | 4~6 | 10.8 | 3 | 12.6 | 18 | 18.5 | PC |
| 1Z29 | 8.5 | 4.2~5.2 | 10.8 | 2.9 | 12.5 | 18 | 18.5 | PC |
| 21P9 | 8.5 | 4.8~6.8 | 9.8 | 3.8 | 9.5 | 17 | 20.8 | POM+PA6 |
| 4477 | 8.5 | 4.8~6.8 | 9.8 | 3.8 | 9.5 | 17 | 17.8 | PA6 |
| 40Y2 | 9 | 1.7~4.5 | 10.8 | 2.2 | 12 | 18 | 17.5 | PA6 |
| 2P48 | 9 | 2.3~4 | 10.8 | 2.4 | 9 | 18 | 14.5 | PA6 |
| 2B82 | 10 | 3~5 | 15 | 5 | 11.5 | 30 X 20 | 25 | PA6 |
| 21Z4 | 10 | 4~5 | 14 | 3 | 14 | 20 | 16.3 | PP+PA6 |
| 3S58 | 10 | 6.5 | 11 | 3 | 14.8 | 16 | 17.8 | PA6 |
| 11U8 | 8 | 1.9~2.8 | 9.2 | 5.3 | 9 | 18 | 14.8 | PA6 |
| 2530 | 8 | 2.3~4.1 | 9.2 | 5 | 9 | 14 X 22 | 17.5 | PA6 |
| 2402 | 8 | 4.6 | 9.2 | 7.5 | 9.5 | 15 X 20 | 17.5 | PA6 |
| 29R0 | 8.5 | 4.6~6.8 | 11.1 | 6.8 | 9.5 | 17 | 20.8 | POM+PA6 |
| 3D24 | 10 | 12~14 | 13.9 | 5 | 20.5 | 30 X 20 | 34 | PA6 |
