Trim Clip: Simplifying Door Trim Attachment

Trim Clip

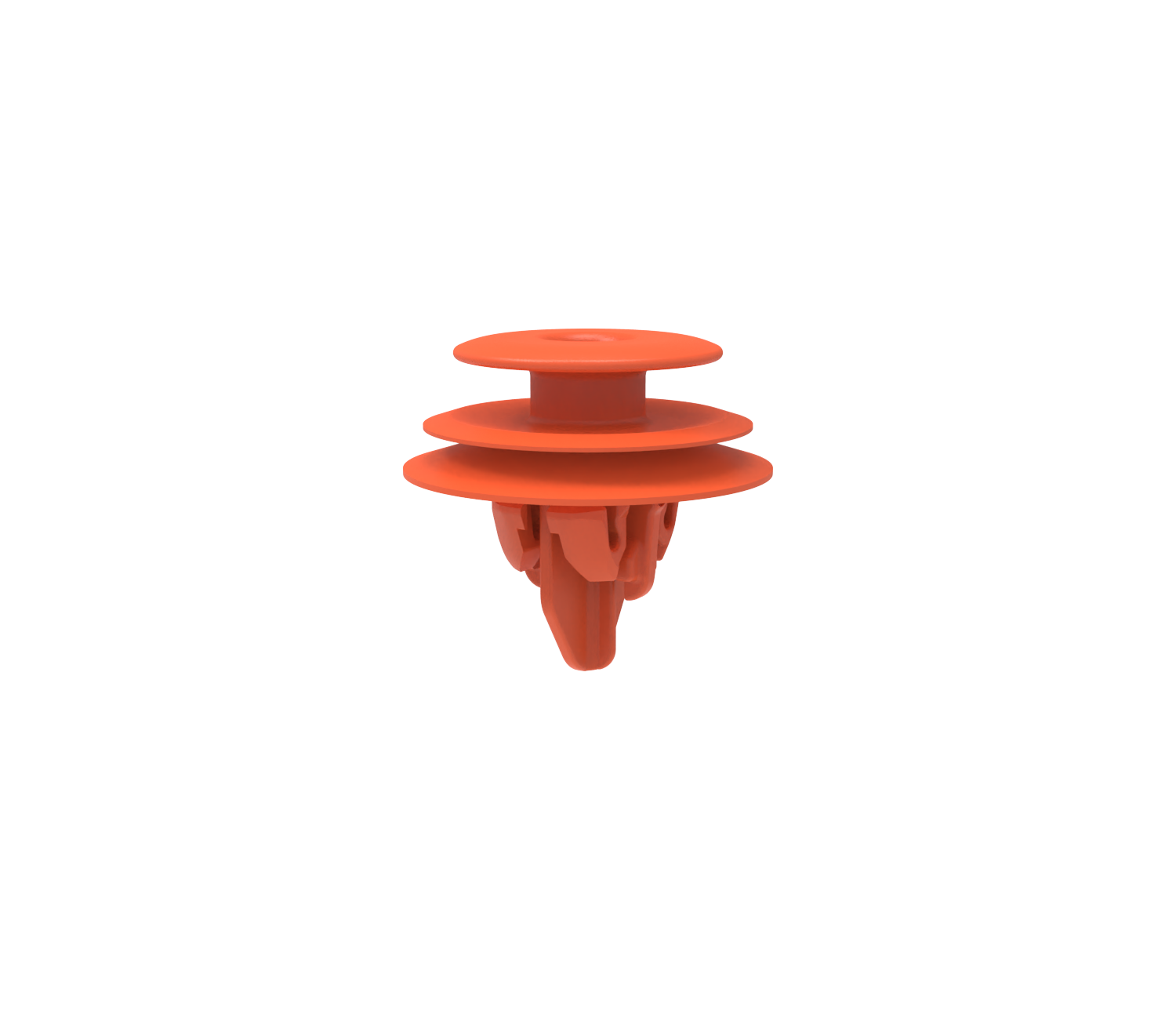

Trim Clip.216

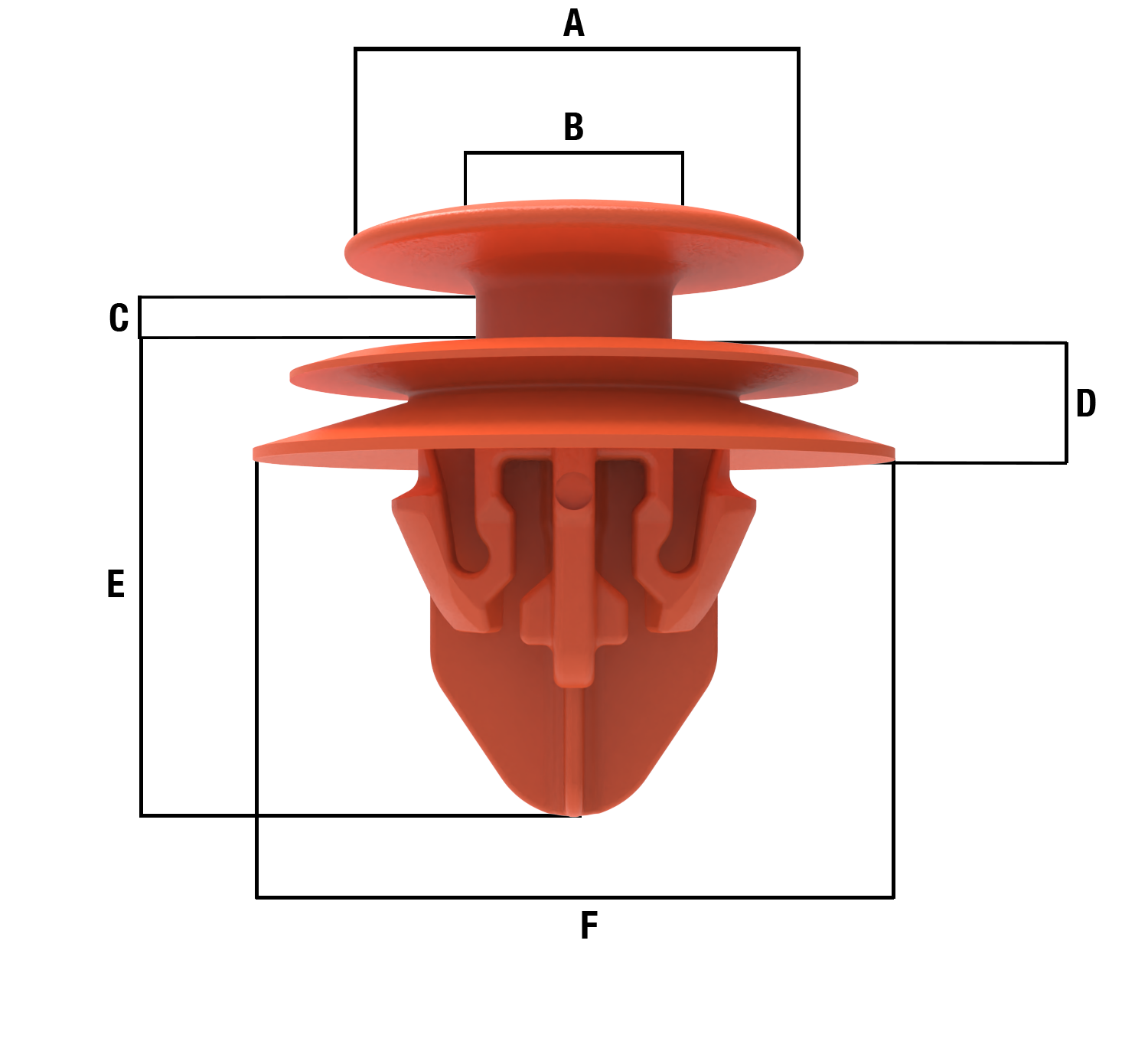

Trim Clip Dimensions

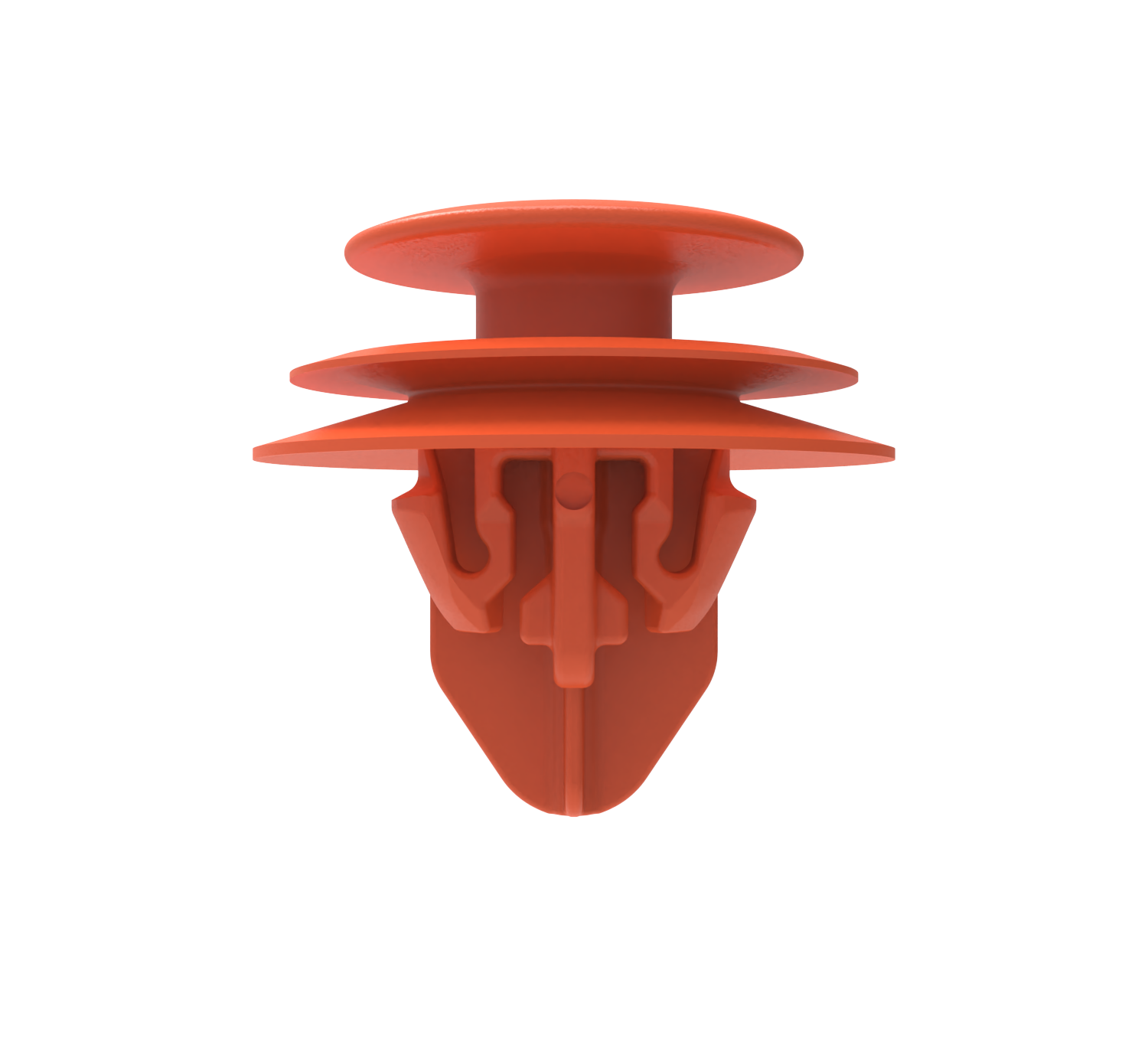

Trim Clip.27

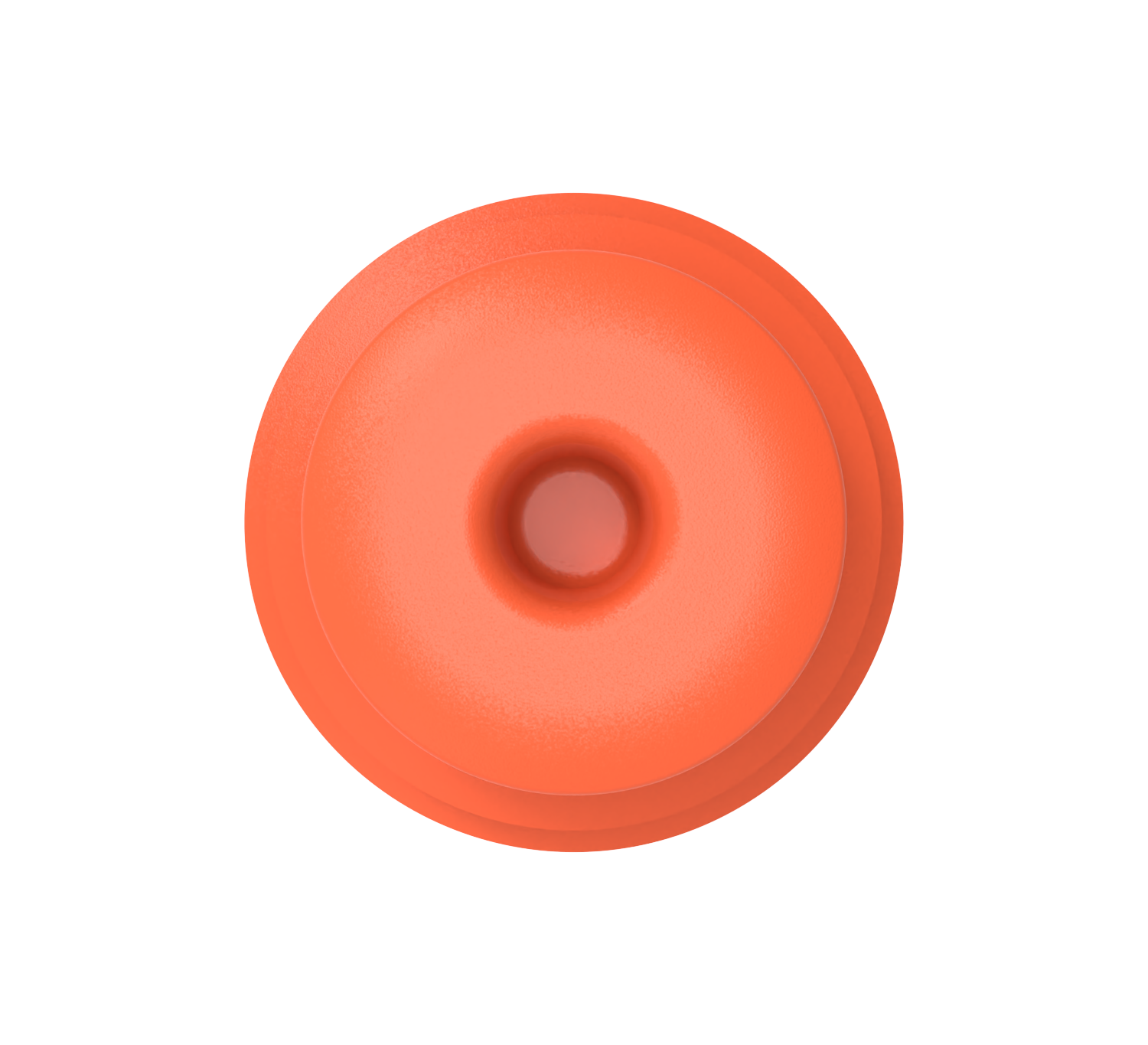

Trim Clip.28

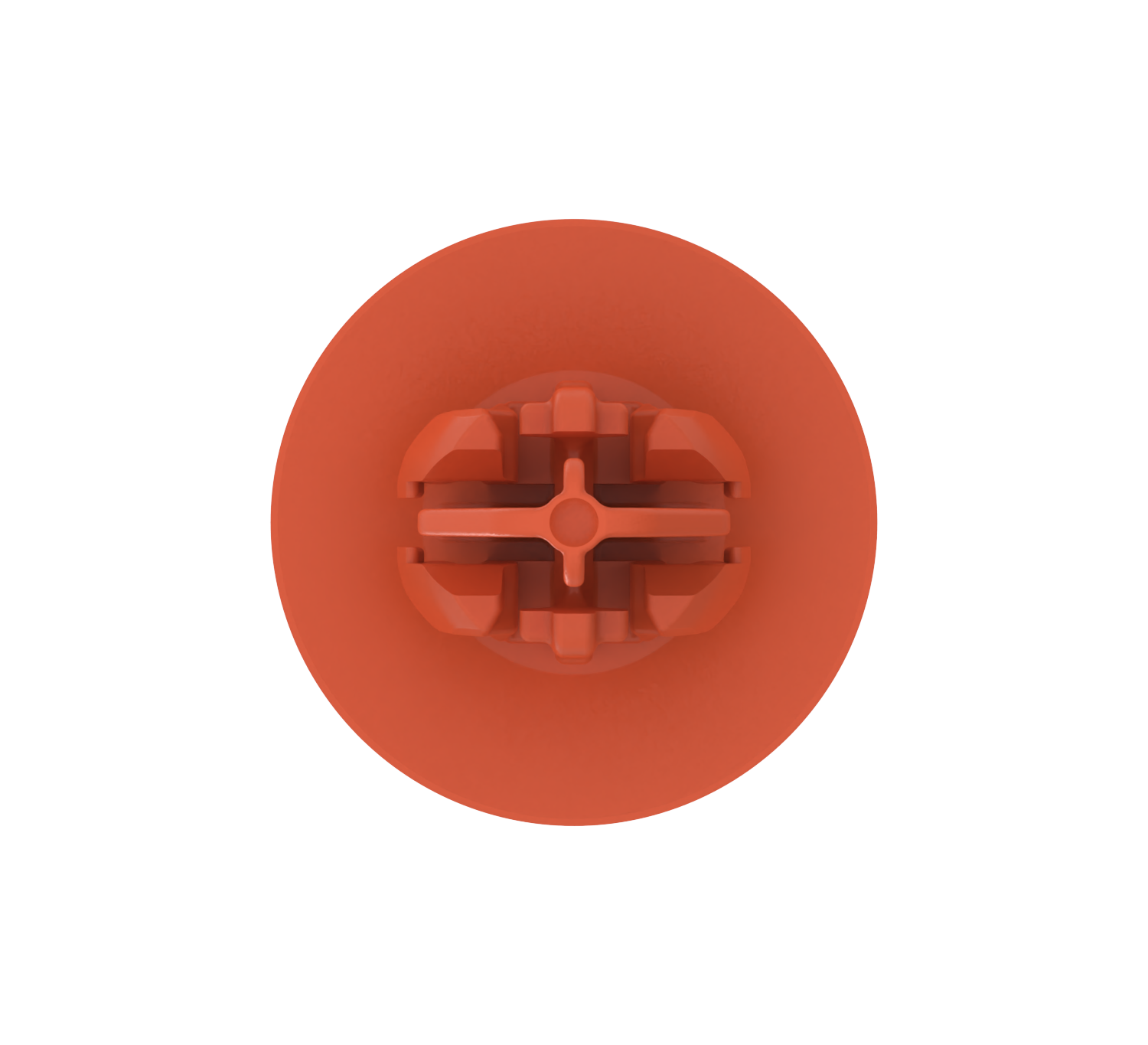

Trim Clip.29

Description

Our trim clip fastener simplifies both attachment and detachment from the door, offering greater flexibility during installation and maintenance. Thanks to its hidden-clip design, the head stays concealed beneath the trim board surface, resulting in a clean and seamless finish. Moreover, it comes in two versatile options: one that doubles as a seal for added protection, and another specifically engineered for reverse punch holes, ensuring compatibility with a variety of applications. To learn more about which version best suits your needs, contact our team today!

Features

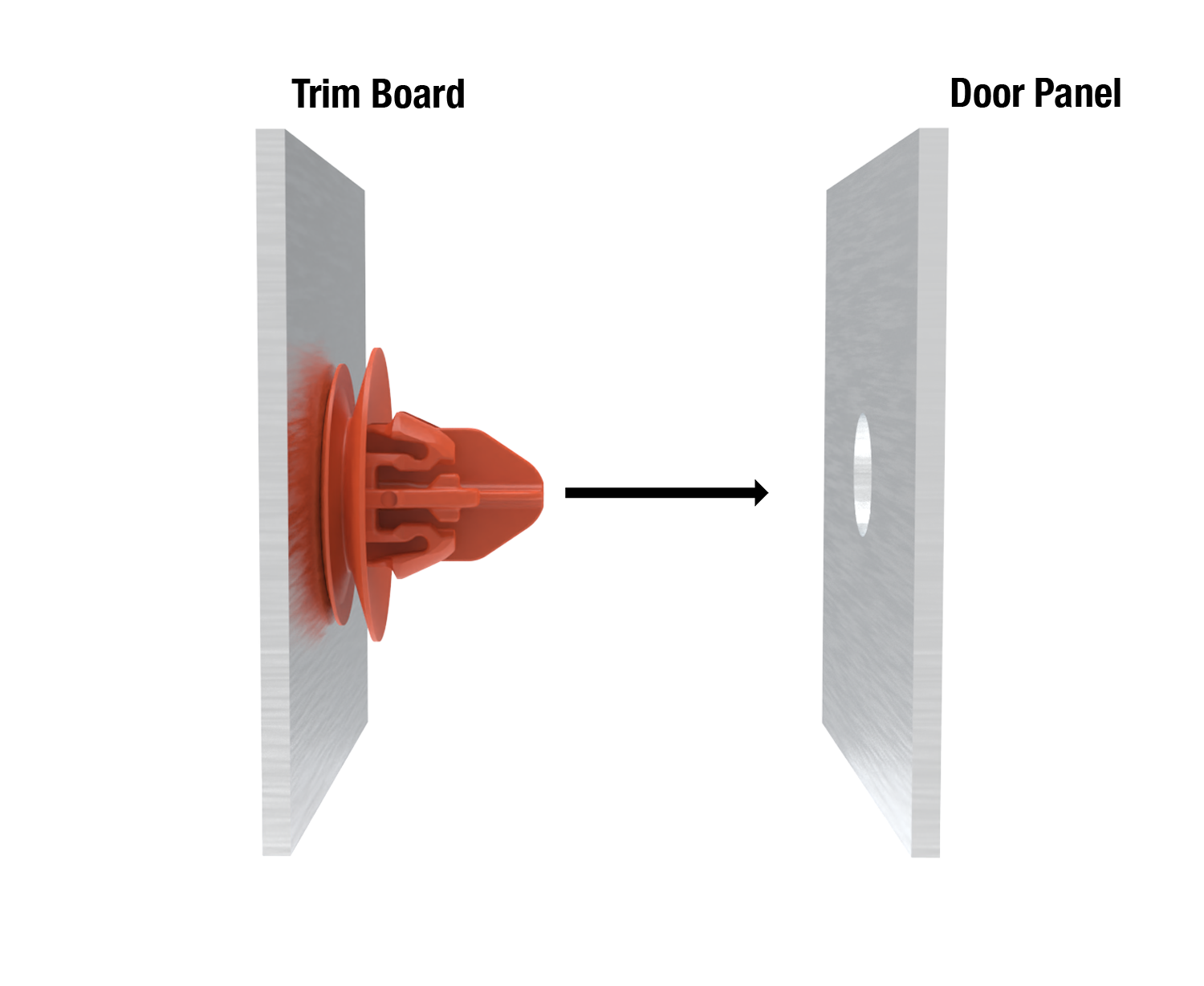

Easy attachment/detachment: Trim board can be effortlessly attached and detached from the door, allowing for flexible installation and maintenance.

Hidden-clip design: The head remains concealed beneath the trim board surface, providing a sleek, seamless appearance.

Multiple versions available: Choose from a version that also functions as a seal for added protection, or one designed specifically for reverse punch holes

Show Entries

Part No.	Hole Size	Thickness	A	B	C	D	E	F	Material
182M	7	0.65 ~ 1.6	12.2	5	1.7	2	12	16	POM
321V	7	0.7	12.2	5	1.7	1.6	9.5	16	POM
014U	7	0.8	12.2	5	1.7	2.2	15.2	16	POM
304G	7	1.4	11	4.5	2.2	1.6	11.1	15	POM
1X9G	8	0.6 ~ 1.4	13	5	2.4	3.8	16.1	18	POM
481B	8	0.65 ~ 0.9	13	5	3	8.3	20.8	18	POM
2P0Z	8	0.7	10	5.8	1	5.5	18.6	18	PAC
49T8	8	0.7 or 1.4	13	5	2.5	3.2	13.2	18	POM
0F1H	8	0.7 ~ 1.6	13	5.8	2.2	3.1	16.6	18	POM
089D	8	0.8	13	5.6	2.6	2.8	16.3	18	POM
1N9P	8	0.8	13	4.9	2	2.5	15.7	18	POM
2P8R	8	1.6 ~ 2.0	13	5.3	2.2	2.4	13.4	18.5	POM
1Z3P	8	2.4 ~ 3.2	13	5	2.8	4.3	17.9	18	POM
350V	8.5	0.6	13	5.6	2.6	2.8	16.3	18	POM
0Z8K	8.5	0.6 ~ 1.6	13	5.6	2.45	3.15	16.65	18	POM
1E3Z	8.5	0.65	13	5.6	2.3	6.2	14.2	10.6	POM
096G	8.5	0.65	13.2	5.8	3	6.8	20.1	18	POM
0N9D	8.5	0.65 ~ 1.4	13	5.8	2.9	4.2	17.7	18	POM
329N	8.5	0.7	13	5.8	3	3	13	18	POM
0T7Z	8.5	0.7	13.2	5.8	2.2	1.9	14.9	18	POM
1B2G	8.5	0.7 ~ 0.9	12	5	3	3.6	11.6	18	POM
007Z	8.5	0.7 ~ 1.6	12	5	3	3.6	16.8	18	POM
0Z6F	8.5	0.7 ~ 1.6	13	5	2.8	2	10	18	POM
2M4G	8.5	0.7 ~ 1.6	13	5.6	1.5	2	12	18	POM
0S2E	8.5	0.7 ~ 1.6	13	5.6	2	2	12	18	POM
1B5A	8.5	0.7~1.6	13	5.6	2.6	2.8	12.8	18	POM
0A3B	8.5	0.7 ~ 1.6	13	5.6	2.6	2.8	16.3	18	POM
1F9A	8.5	0.7 ~ 1.6	13	5.6	2.6	2.8	16.3	18	POM
2S3M	8.5	0.7 ~ 1.6	13	5.6	2.6	2.8	16.3	18	POM
1N0E	8.5	0.7~1.6	13	5.6	3.1	2.8	16.3	18	POM
271E	8.5	0.8	13	5	2.8	2.2	10	18	POM
39K4	8.5	0.8	13	5.6	2	2	13	18	POM
0J0B	8.5	0.8	13	5.6	2.5	2	15	18	POM
0J0A	8.5	0.8	13	5.6	2.5	2	20	18	POM
113Y	8.5	0.8	13	5.6	2.8	3.4	16.4	18	POM
42E1	8.5	0.8	13	5.6	3	2.4	13.8	18	POM
38D1	8.5	0.8	13	5.6	3	2.4	16.3	18	POM
35W6	8.5	0.8	13	5.8	3	3.3	15.8	18	POM
279J	8.5	0.8 ~ 1.0	13	5.8	2.2	1.9	16.2	16	POM
373R	8.5	1.2	13	5.8	3	3.5	12	18	POM
0P2N	8.5	1.4 ~ 2.0	13	5.6	2.6	3.2	13.2	16	POM
39D9	8.5	1.6	13	5.6	3	2.8	16.9	18	POM
147Y	8.5	1.6	13.2	5.6	3	2.8	13.4	15	POM
207Y	8.6	0.6 ~ 1.4	13	5	2.6	3.4	16.6	18	POM
2K0E	10.2	0.7 ~ 1.2	14	5	2.5	2.2	15.2	18.5	POM
0Z9M	10.5	0.65 ~ 0.9	13	4.9	2	2.5	12.8	18	POM
1D5Y	10.5	0.9	13	4.9	2	2.5	12.8	18	POM
2G05	7.7	0.6 ~ 1	12	4.8	2.3	2.9	9.2	14	POM
4P86	8	0.6 ~ 0.9	13	5.1	2.1	2.7	14.9	17	POM
082N	8	0.7	13	5.1	2.9	2.5	14.5	17	POM
4P87	8	0.7	13	5.1	2.9	2.5	14.5	17 .0	POM
2E2Z	8.5	0.6 ~ 0.8	13	5.8	2.6	2.3	15.6	20	POM
35V0	8.5	0.65 ~ 1.2	13	5.8	3	3.8	13.3	18	POM
21PO	8.5	0.7	13.2	5.6	2.4	3.4	13.9	15	POM
42S2	8.5	0.7	13.2	5.6	3	3.8	12.9	15	POM
42S0	8.5	0.7	13.2	5.8	0.9	3.8	13.3	15	POM
31Y7	8.5	0.8	13	5.6	2	2	14.1	18	POM
22WO	8.5	0.8	13	5.6	3	3.4	13.9	15	POM
337H	8.5	0.8	13	5.6	2	3.4	13.9	16 .0	POM
21N8	8.5	0.8	13	5.8	3	3.3	15.6	18	POM
32M8	8.5	0.8	13	5.8	3	3.3	15.6	18	POM
34K0	8.5	0.8	13	5.8	3	3.8	13.3	15	POM
36D0	10.5	0.7 ~ 0.9	13	4.8	2	2.5	11.9	18	POM
