The weather strip clip integrates directly with the weather strip, so you can pre-attach the flange and speed up the assembly process. As a result, installation becomes faster and more consistent. Once aligned with the mounting point, you simply push the clip into place—no tools needed. This efficient, tool-free design not only saves time but also reduces labor costs. Furthermore, it enhances operational efficiency across automotive, industrial, and consumer applications. Ultimately, the weather strip clip delivers reliable performance and long-term productivity. Contact our team today to find out how this product can improve your assembly process!
Pre-attached flange: The weather strip clip includes a flange that attaches to the weather strip in advance, which streamlines the installation process and saves time.

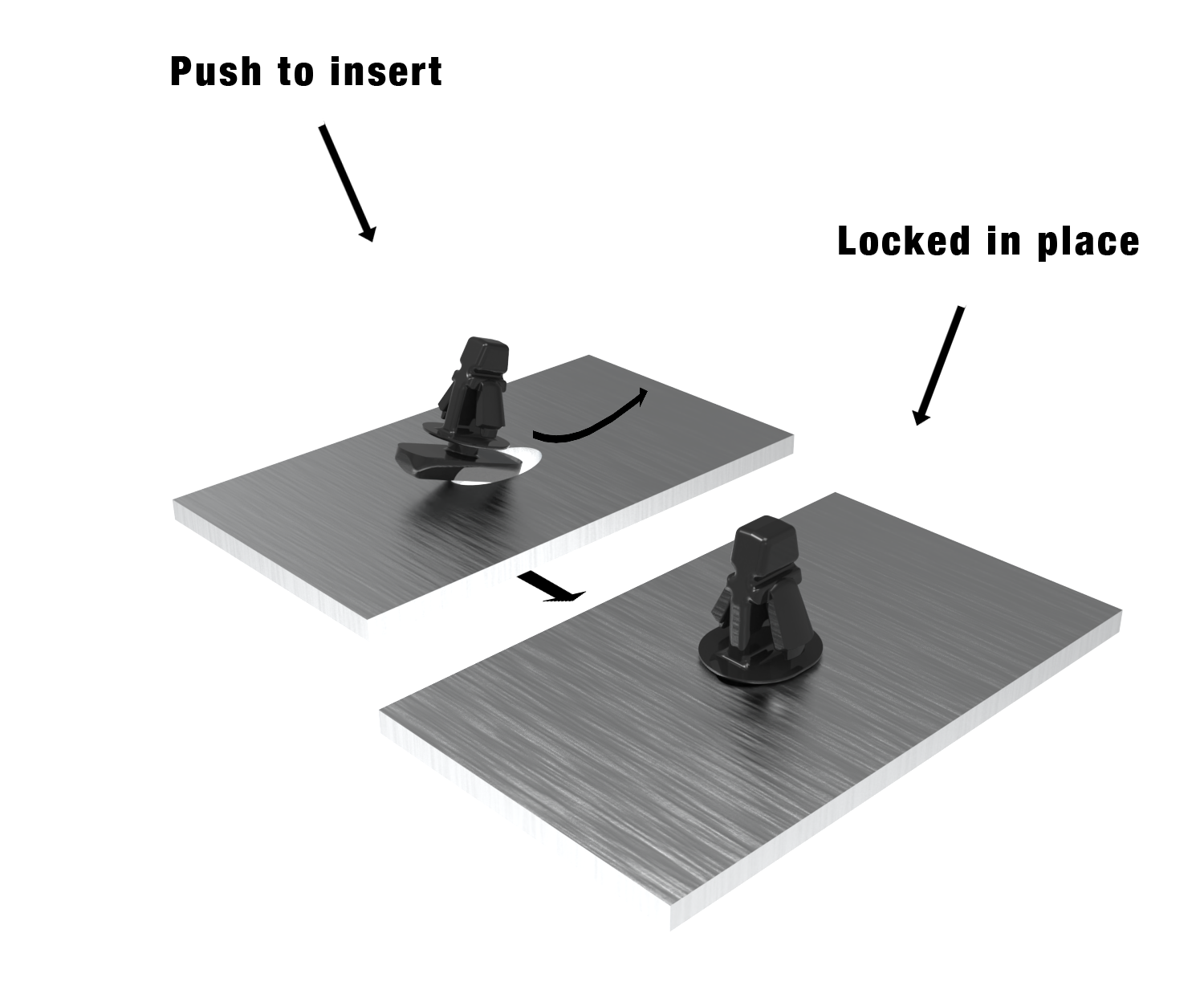

Quick push-in attachment: After aligning the clip, you can simply push it into place—no tools required—allowing for fast, efficient, and reliable assembly.
| 13N6 | 5 | 0.8 | 5.0 X 15.0 | 2 | 1.8 | 8.5 | PA6 |
| 1164 | 5 | 0.8 | 6.5 X 16.5 | 1.8 | 2 | 10.6 | PA6 |
| 1585 | 5 | 0.8 | 6.5 X 16.5 | 1.8 | 2 | 5.2 | PA6 |
| 2D49 | 5 | 0.8 | 6.5 X 16.5 | 2 | 1.8 | 10.6 | PA6 |
| 2003 | 5 | 0.8 | 6.5 X 16.5 | 2 | 2.2 | 11.5 | PA6 |
| 2E19 | 5 | 0.8 ~ 1.4 | 6.6 X 16.0 | 1.5 | 3.1 | 15.5 | POM |
| 3047 | 5 | 0.9 | 6.6 X 16.0 | 1.8 | 1.3 | 12.1 | PA6 |
| 33E8 | 5.2 | 0.6 ~ 0.7 | 5.0 X 15.0 | 1.5 | 2.15 | 10 | PA6 |
| 2K18 | 5.2 | 0.6 ~ 0.8 | 5.0 X 13.0 | 1.5 | 2.2 | 8.5 | PA6 |
| 1KOS | 5.2 | 0.6 ~ 0.8 | 5.0 X 15.0 | 1.5 | 2.15 | 10 | PA6 |
| 1M09 | 5.2 | 0.7 | 5.0 X 13.0 | 1.8 | 1.7 | 5.7 | PA6 |
| 1506 | 5.2 | 0.7 | 5.0 X 16.0 | 1.5 | 1.5 | 9.5 | PA6 |
| 470E | 5.2 | 0.7 ~ 1.4 | 5.0 X 15.0 | 1.7 | 3.1 | 7 | POM |
| 005Z | 5.2 | 0.7~1.4 | 5.0 X 15.0 | 1.7 | 3.1 | 13.5 | POM |
| 2K4K | 5.2 | 0.7 ~ 1.6 | 6.6 X 16.0 | 1.5 | 2.6 | 12 | POM |
| 4502 | 5.2 | 0.7 ~ 1.8 | 5.6 X 16.0 | 1.5 | 2.6 | 12.3 | PA6 |
| 46K8 | 5.2 | 0.7 ~ 2.0 | 6.6 X 16.0 | 1.5 | 2.6 | 12 | POM |
| 11Y7 | 5.2 | 0.8 | 5.0 X 15.0 | 1.7 | 3.5 | 13.3 | PC+TPE |
| 1500 | 5.2 | 0.8 | 6.6 X 16.0 | 1.7 | 1.5 | 12 | PA6 |
| OW7F | 5.2 | 1.4 ~ 2.2 | 5.6 X 16.0 | 1.5 | 2.6 | 9.8 | PA6 |
| 287V | 5.2 | 1.9 ~ 2.8 | 5.0 X 15.0 | 1.7 | 3.1 | 14.9 | POM |
| 1N35 | 6 | 0.7 ~ 0.8 | 6.5 X 16.5 | 1.5 | 5.2 | 12.2 | POM |
